Hisense · Malaysia

Hisense air conditioners: wall-mounted, cassette and floor-standing

Wall mounted · Ceiling cassette · Floor standing

The Hisense ranges we supply and install: two inverter wall-mounted series, inverter and non-inverter ceiling cassettes, and floor-standing units. Every figure is transcribed from Hisense's own brochures, and each series names the document it came from.

19 model numbers · 5 series · 3 Hisense brochures

Wall Mounted

The standard split unit: one indoor unit high on a wall, one outdoor unit. Hisense's two current inverter ranges.

Flagship

X6 HBA Series

Hisense's new 5-star inverter wall-mounted range, in four models from AS10X6HBA to AS25X6HBA.

Models: 4
Refrigerant: —

4-in-1 filter — HEPA, Silver Ion, Photic Catalyst and Catechin filters, in Hisense's words.
ConnectLife app and voice control — Control over Wi-Fi from Hisense's ConnectLife app, and voice control through supported smart speakers.
Quiet — Indoor noise as low as 19 dB(A), per Hisense.

Specifications and model numbers

Model numbers (4)

AS10X6HBA · AS13X6HBA · AS20X6HBA · AS25X6HBA

Full specifications on request.

Figures transcribed from Hisense's X6 HBA brochure, file dated July 2026.

A Hisense X5 KCA wall-mounted unit above a bed, from Hisense's leaflet.

Flagship

X5 KCA Series

Hisense's R32 inverter wall-mounted range, from 1.0 to 2.5 HP (9,550–24,000 Btu/h).

Capacity: 9,550–24,000 Btu/h
Models: 4
Refrigerant: R32

4–5 starCSPF 5.1–5.4

5-Star from 1.0 to 2.0 HP — CSPF 5.4 (1.0 and 1.5 HP) and 5.1 (2.0 HP); the 2.5 HP is 4-Star at CSPF 5.2.
Hisense's warranty — 3 years for all parts and 12 years for the compressor, as printed on Hisense's leaflet.
Features Hisense lists — Voice control, ConnectLife app, I Feel, anti-mildew running, 100% copper pipes, Golden Fin and fast cooling.

Specifications and model numbers

Model numbers (4)

X5 KCA Series — model numbers with cooling capacity.
Indoor unit	Horsepower	Cooling capacity
AS10X5KCA	1.0 HP	9550 Btu/h
AS13X5KCA	1.5 HP	13000 Btu/h
AS20X5KCA	2.0 HP	19000 Btu/h
AS25X5KCA	2.5 HP	24000 Btu/h

Full technical specifications

X5 KCA Series — full technical specifications, transcribed from Hisense's brochure.
Specification	AS10X5KCA	AS13X5KCA	AS20X5KCA	AS25X5KCA
Indoor unit	AS10X5KCA	AS13X5KCA	AS20X5KCA	AS25X5KCA
Power supply	220 - 240V~, 50Hz, 1P	220 - 240V~, 50Hz, 1P	220 - 240V~, 50Hz, 1P	220 - 240V~, 50Hz, 1P
Cooling capacity (W)	2800	3870	5570	7000
Cooling capacity (Btu/h)	9550	13000	19000	24000
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP
CSPF (Wh/Wh)	5.4	5.4	5.1	5.2
Energy rating	5-Star	5-Star	5-Star	4-Star
Input power, rated (max) (W)	750	1100	1550	2150
Rated current (max) (A)	3.4	—*	7.4	9.7
Airflow (m³/h)	580	580	950	1100
Indoor sound (dB(A))	36/33/29/23	38/34/29/23	44/38/34/31	46/42/38/34
Outdoor sound (dB(A))	51	52	55	56
Indoor dimensions W×H×D (mm)	822 × 258 × 203	822 × 258 × 203	920 × 300 × 227	1032 × 327 × 227
Outdoor dimensions W×H×D (mm)	660 × 482 × 240	715 × 540 × 240	785 × 545 × 260	810 × 585 × 280
Indoor weight (kg)	7.8	7.8	10.5	11.5
Outdoor weight (kg)	19	20.5	25.5	33

—* Figure being confirmed with Hisense.

Figures transcribed from Hisense's X5 KCA leaflet, file dated March 2026.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Ceiling Cassette

Set into a suspended ceiling and discharging all round. Hisense's own examples are supermarkets, classrooms and libraries.

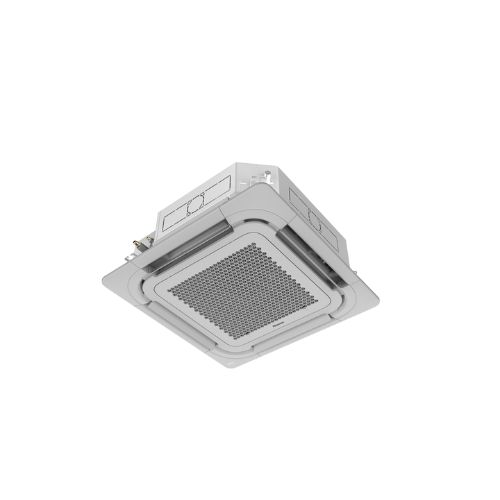

AUC QFGSI — Inverter Cassette

Hisense's inverter ceiling cassette, in four capacities from 18,425 to 47,779 Btu/h.

Compressor: Inverter
Refrigerant: R32
Capacity: 18,425–47,779 Btu/h
Energy rating: —
Models: 4
Best for: Supermarkets, classrooms and libraries

Specifications and model numbers

360° round flow: Eight outlets instead of the common four, per Hisense.
Ag+ antibacterial filter and water pump: Both standard on this range, per Hisense's functions table.
Control: Remote control; ConnectLife app and wired controller listed as optional.

Model numbers (4)

AUC QFGSI — Inverter Cassette — model numbers with cooling capacity.
Indoor unit	Cooling capacity
AUC20QFGSI	18425 (7165 - 19790) Btu/h
AUC25QFGSI	25931 (8530 - 27297) Btu/h
AUC35QFGSI	30033 (9758 - 32585) Btu/h
AUC50QFGSI	47779 (12624 - 49476) Btu/h

Full technical specifications

AUC QFGSI — Inverter Cassette — full technical specifications, transcribed from Hisense's brochure.
Specification	AUC20QFGSI	AUC25QFGSI	AUC35QFGSI	AUC50QFGSI
Indoor unit	AUC20QFGSI	AUC25QFGSI	AUC35QFGSI	AUC50QFGSI
Power supply	Indoor 220V-1Ph-50Hz · Outdoor 220-240V-1ph-50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 220-240V/50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 220-240V-1ph-50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 380V-415V-3Ph-50Hz/60Hz
Cooling capacity (W)	5400 (2100 - 5800)	7600 (2500 - 8000)	8800 (2860 - 9550)	14000 (3700 - 14500)
Cooling capacity (Btu/h)	18425 (7165 - 19790)	25931 (8530 - 27297)	30033 (9758 - 32585)	47779 (12624 - 49476)
EER (W/W)	3.91	3.45	3.24	2.83
Input power, rated (max) (W)	1380 (1800)	2200 (3200)	2720 (3680)	4850 (5150)
Rated current (max) (A)	8.1 (9.5)	8.9 (14.2)	12.0 (16.0)	9.0 (9.5)
Airflow (cfm)	735/647/560	794/676/618	912/824/677	1176/1029/911
Airflow (m³/h)	1250/1100/950	1350/1150/1050	1550/1400/1150	2000/1750/1550
Indoor sound (dB(A))	40/35/33	44/40/35	48/44/40	52/50/48
Outdoor sound (dB(A))	50	53	54	62
Indoor dimensions W×H×D (mm)	840 × 236 × 840	840 × 236 × 840	840 × 236 × 840	840 × 272 × 840
Outdoor dimensions W×H×D (mm)	810 × 580 × 280	860 × 670 × 310	860 × 670 × 310	975 × 835 × 360
Indoor weight (kg)	23.0/28.0	23.0/28.0	23.0/28.0	26/32
Outdoor weight (kg)	33.0/35.5	40.0/44.0	40.0/43.5	71.5/80.5

Figures in brackets, as Hisense prints them: (min – max) for capacity; (max) for input power and current.
Weights: net/gross.

Figures transcribed from Hisense's LCAC Product Collection 2025, file dated April 2025.

AUC QFGS — Non-Inverter Cassette

Hisense's non-inverter ceiling cassette, in four capacities from 19,670 to 49,500 Btu/h, rated for outdoor temperatures from 16 to 46 °C.

Compressor: Non-Inverter
Refrigerant: R32
Capacity: 19,670–49,500 Btu/h
Energy rating: —
Models: 4
Best for: Supermarkets, classrooms and libraries

Specifications and model numbers

360° round flow: Eight outlets, as on the inverter range.
Ag+ antibacterial filter and water pump: Both standard on this range, per Hisense's functions table.

Model numbers (4)

AUC QFGS — Non-Inverter Cassette — model numbers with cooling capacity.
Indoor unit	Cooling capacity
AUC20QFGS	19670 Btu/h
AUC25QFGS	26000 Btu/h
AUC35QGS	32800 Btu/h
AUC50QFGS	49500 Btu/h

Full technical specifications

AUC QFGS — Non-Inverter Cassette — full technical specifications, transcribed from Hisense's brochure.
Specification	AUC20QFGS	AUC25QFGS	AUC35QGS	AUC50QFGS
Indoor unit	AUC20QFGS	AUC25QFGS	AUC35QGS	AUC50QFGS
Power supply	Indoor 220V-1Ph-50Hz · Outdoor 220-240V-1ph-50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 220-240V/50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 220-240V-1ph-50Hz/60Hz	Indoor 220V-1Ph-50Hz · Outdoor 380V-415V-3Ph-50Hz/60Hz
Cooling capacity (W)	5765	7620	9615	14520
Cooling capacity (Btu/h)	19670	26000	32800	49500
EER (W/W)	3.39	3.44	3.72	3.39
Input power, rated (max) (W)	1700 (2300)	2215 (2810)	2582 (3200)	4280 (5500)
Rated current (max) (A)	7.5 (12.0)	9.8 (13.8)	11.5 (15.5)	7.8 (10.0)
Airflow (cfm)	765/706/618	765/706/618	1176/1088/912	1176/1088/912
Airflow (m³/h)	1300/1200/1050	1300/1200/1050	2000/1850/1550	2000/1850/1550
Indoor sound (dB(A))	45/42/40	45/42/40	55/53/50	55/53/50
Outdoor sound (dB(A))	53	56	56	56
Indoor dimensions W×H×D (mm)	840 × 236 × 840	840 × 236 × 840	840 × 272 × 840	840 × 272 × 840
Outdoor dimensions W×H×D (mm)	780 × 260 × 540	860 × 310 × 665	860 × 310 × 665	950 × 340 × 1050
Indoor weight (kg)	23.5/29.0	23.5/29.0	28.0/34.5	28.0/34.5
Outdoor weight (kg)	34/36	46/49	54/57	80/91

Figures in brackets, as Hisense prints them: (min – max) for capacity; (max) for input power and current.
Weights: net/gross.
AUC35QGS is printed as shown in Hisense's catalogue.

Figures transcribed from Hisense's LCAC Product Collection 2025, file dated April 2025.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Floor Standing

A tall unit on the floor with a large airflow and a long throw, for large spaces.

Light commercial

AUF CMG — Floor Standing

Hisense's non-inverter floor-standing range for large spaces, from 24,800 to 48,000 Btu/h.

Capacity: 24,800–48,000 Btu/h
Models: 3
Refrigerant: R32

18 m air throw — Large airflow and long throw for open spaces, per Hisense.
Long piping — Up to 50 m of piping and 30 m height difference on the 48K; 30 m and 15 m on the 24K.
4D airflow — Horizontal and vertical auto-swing set from the controller.

Specifications and model numbers

Model numbers (3)

AUF CMG — Floor Standing — model numbers with cooling capacity.
Indoor unit	Cooling capacity
AUF25CMG	24800 Btu/h
AUF35CMG	36000 Btu/h
AUF50CMG	48000 Btu/h

Full technical specifications

AUF CMG — Floor Standing — full technical specifications, transcribed from Hisense's brochure.
Specification	AUF25CMG	AUF35CMG	AUF50CMG
Indoor unit	AUF25CMG	AUF35CMG	AUF50CMG
Power supply	220-240V 1Ph~ 50Hz	220-240V 1Ph~ 50Hz	380-415V 3Ph~ 50Hz
Cooling capacity (W)	7268	10551	14000
Cooling capacity (Btu/h)	24800	36000	48000
EER (W/W)	3.30	3.30	3.50
Input power, rated (max) (W)	2200 (2750)	3197 (4500)	4000 (5000)
Rated current (max) (A)	10.0 (15)	14.5 (24)	6.8 (11)
Airflow (cfm)	647	1118	1118
Airflow (m³/h)	1100	1900	1900
Indoor sound (dB(A))	48	54	54
Outdoor sound (dB(A))	56	62	56
Indoor dimensions W×H×D (mm)	500 × 1760 × 280	580 × 1870 × 380	580 × 1870 × 380
Outdoor dimensions W×H×D (mm)	860 × 667 × 310	885 × 795 × 366	950 × 1050 × 340
Indoor weight (kg)	32.5/39	50/62	50/62
Outdoor weight (kg)	46/49	65/69	80/91

Figures in brackets, as Hisense prints them: (min – max) for capacity; (max) for input power and current.
Weights: net/gross.

Figures transcribed from Hisense's LCAC Product Collection 2025, file dated April 2025.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Sources

Hisense, X5 KCA leaflet (file dated March 2026) — features p. 1, specifications p. 2.
Hisense, X6 HBA brochure (file dated July 2026) — features and model codes.
Hisense, LCAC Product Collection 2025 (file dated April 2025) — cassettes pp. 07–08, floor standing pp. 11–12, functions pp. 13–14.
