Wall Mounted

The standard split unit — one indoor unit high on a wall, one outdoor unit. The most common format in Malaysian homes and small offices.

Specified for: Bedrooms and living rooms; Small offices, clinics and retail lots; Like-for-like replacement on existing pipework.

Energy rating at a glance

Malaysian energy star rating and CSPF for each wall-mounted series, most efficient first.
Series	Energy rating	CSPF
FTKH Series — Smarto	5-star	5.75–6.40
FTKM Series	5-star	5.87–7.40
FTKP Series	5-star	5.30–6.00
FTKF Series	4–5 star	4.60–6.00
FTKB Series	4-star	4.50–5.60
FTKE Series	3–4 star	4.20
FTV-P Series	3-star	3.22–3.59

The Daikin FTKH Smarto wall-mounted unit, shown in close-up with its airflow louvre open.

Flagship

FTKH Series — Smarto

Daikin's smart-control wall-mounted range, rated 5-star across every capacity.

Capacity: 9,700–19,000 Btu/h
Models: 3
Refrigerant: R32

5-starCSPF 5.75–6.40

5 star across the range — Every capacity is rated 5 star, at CSPF 6.40 (28 class), 6.31 (35) and 5.75 (50).
Gin-ION Blue Filter — Tested by the Guangdong Detection Center of Microbiology: 99.94% decomposition of Influenza H1N1 in 2 hours, over 99.99% reduction of Escherichia coli, and no fungus visible under microscope (Grade 0).
Smart Control built in — Smarto carries Daikin's Smart Control on the indoor unit rather than as an add-on module.

Specifications and model numbers

Model numbers (3)

FTKH Series — Smarto — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKH28BV1MF	RKU28BV1M	9,700 (3,700 - 11,600) Btu/h
FTKH35BV1MF	RKU35BV1M	12,100 (4,000 - 13,000) Btu/h
FTKH50BV1MF	RKU50BV1M	19,000 (6,000 - 21,200) Btu/h

Full technical specifications

FTKH Series — Smarto — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKH28BV1MF	FTKH35BV1MF	FTKH50BV1MF
Indoor unit	FTKH28BV1MF	FTKH35BV1MF	FTKH50BV1MF
Outdoor unit	RKU28BV1M	RKU35BV1M	RKU50BV1M
Cooling capacity (kW)	2.84 (1.08 - 3.40)	3.55 (1.17 - 3.81)	5.57 (1.76 - 6.21)
Cooling capacity (Btu/h)	9,700 (3,700 - 11,600)	12,100 (4,000 - 13,000)	19,000 (6,000 - 21,200)
CSPF (Wh/Wh)	6.40	6.31	5.75
Energy rating	5 star	5 star	5 star
Power consumption (W)	720 (260 - 1,200)	940 (280 - 1,250)	1,570 (420 - 2,200)
Running current (A)	3.28	4.20	6.90
Airflow (cfm)	380	400	430
Indoor sound (dB(A))	39 / 27 / 20	40 / 28 / 22	43 / 33 / 31
Outdoor sound (dB(A))	45	46	49
Indoor dimensions H×W×D (mm)	288 x 779 x 246	288 x 779 x 246	288 x 779 x 246
Outdoor dimensions H×W×D (mm)	550 x 658 x 273	550 x 658 x 273	615 x 845 x 300

Control: Daikin Smart Control built into the indoor unit; Wi-Fi operation via the Daikin app.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKH-0426-M, April 2026, revision M.

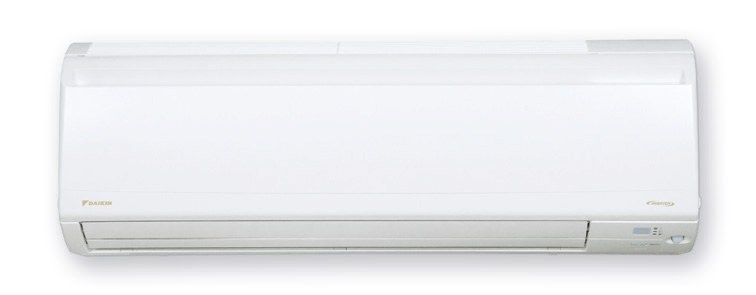

FTKM Series

A 5-star inverter range reaching the highest CSPF on this page — 7.40 at the 25 class — and extending to 7.1 kW, the largest wall-mounted capacity Daikin lists here.

Best for: Bedrooms and living rooms where running cost is the deciding factor

Capacity: 8,500–24,200 Btu/h
Models: 5

5-starCSPF 5.87–7.40

Specifications and model numbers

CSPF up to 7.40: The 25 class is rated 7.40 Wh/Wh, the highest figure on this page; the range runs 5.87 to 7.40 and every capacity is 5 star.
Five capacities to 7.1 kW: 25, 35, 50, 60 and 71 classes — 8,500 to 24,200 Btu/h from a single wall unit.
Coanda airflow: Discharge is turned along the ceiling rather than down at the occupant.
Good Design Award 2021: The brochure records the Malaysia Good Design Award (PSA) 2021 for this series.

Large living areas needing more than a 5 kW wall unit
Homes wanting Coanda airflow rather than a unit blowing directly down

Model numbers (5)

FTKM Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKM25TVMM	RKM25TVMM	8,500 (4,100 - 12,300) Btu/h
FTKM35TVMM	RKM35TVMM	11,900 (4,100 - 14,000) Btu/h
FTKM50TVMM	RKM50TVMM	17,700 (4,100 - 21,200) Btu/h
FTKM60TVMM	RKM60TVMM	20,500 (4,100 - 24,200) Btu/h
FTKM71TVMM	RKM71TVMM	24,200 (4,100 - 28,000) Btu/h

Full technical specifications

FTKM Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKM25TVMM	FTKM35TVMM	FTKM50TVMM	FTKM60TVMM	FTKM71TVMM
Indoor unit	FTKM25TVMM	FTKM35TVMM	FTKM50TVMM	FTKM60TVMM	FTKM71TVMM
Outdoor unit	RKM25TVMM	RKM35TVMM	RKM50TVMM	RKM60TVMM	RKM71TVMM
Cooling capacity (kW)	2.5 (1.2 - 3.6)	3.5 (1.2 - 4.1)	5.2 (1.2 - 6.2)	6.0 (1.2 - 7.1)	7.1 (1.2 - 8.2)
Cooling capacity (Btu/h)	8,500 (4,100 - 12,300)	11,900 (4,100 - 14,000)	17,700 (4,100 - 21,200)	20,500 (4,100 - 24,200)	24,200 (4,100 - 28,000)
CSPF (Wh/Wh)	7.40	6.53	6.70	6.21	5.87
Energy rating	5 star	5 star	5 star	5 star	5 star
Power consumption (W)	520 (185 - 920)	900 (185 - 1,160)	1,240 (290 - 1,880)	1,520 (290 - 2,230)	2,260 (290 - 2,770)
Running current (A)	2.60	4.40	5.90	7.20	10.50
Airflow (cfm)	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	593	657	699
Indoor sound (dB(A))	42 / 26 / 19	43 / 28 / 19	45 / 35 / 29	48 / 37 / 29	49 / 37 / 30

Control: Daikin Mobile Controller as an optional accessory — BRP067A42 for the 25/35 classes, BRP980B42 for 50/60/71. Remote controllers ARC466A51 (25/35) and ARC466A52 (50/60/71).

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKM-0323-D-L, March 2023, revision D.

FTKP Series

An R32 inverter wall-mounted range rated 5 star across all four capacities, built on a 28-class entry capacity rather than the 25 class the other series use.

Best for: Bedrooms and living rooms

Capacity: 9,500–24,000 Btu/h
Models: 4

5-starCSPF 5.30–6.00

Specifications and model numbers

5 star across all four capacities: CSPF runs 5.30 at the 28 and 35 classes, 5.60 at the 50 and 6.00 at the 71 — every capacity carries the 5 star label.
28-class entry capacity: The smallest FTKP is a 28 class, which sits between the 25 and 35 classes used across the rest of the wall-mounted line-up.
Wireless or wired on every model: Each capacity ships as an -AV1MF wireless model or an -AV1MW wired model; the machine is identical and only the controller differs.

Replacements where the existing unit is a 1.0HP-class 28 rather than a 25

Model numbers (4)

FTKP Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKP28AV1M	RKP28AV1M9	9,500 (3,400 - 11,000) Btu/h
FTKP35AV1M	RKP35AV1M	12,300 (4,100 - 13,000) Btu/h
FTKP50AV1M	RKP50AV1M	19,000 (6,000 - 21,200) Btu/h
FTKP71AV1M	RKP71AV1M	24,000 (6,600 - 24,500) Btu/h

Full technical specifications

FTKP Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKP28AV1M	FTKP35AV1M	FTKP50AV1M	FTKP71AV1M
Indoor unit	FTKP28AV1M	FTKP35AV1M	FTKP50AV1M	FTKP71AV1M
Outdoor unit	RKP28AV1M9	RKP35AV1M	RKP50AV1M	RKP71AV1M
Wireless model	FTKP28AV1MF	FTKP35AV1MF	FTKP50AV1MF	FTKP71AV1MF
Wired model	FTKP28AV1MW	FTKP35AV1MW	FTKP50AV1MW	FTKP71AV1MW
Cooling capacity (kW)	2.78 (1.00 - 3.22)	3.60 (1.20 - 3.81)	5.57 (1.76 - 6.21)	7.03 (1.93 - 7.18)
Cooling capacity (Btu/h)	9,500 (3,400 - 11,000)	12,300 (4,100 - 13,000)	19,000 (6,000 - 21,200)	24,000 (6,600 - 24,500)
CSPF (Wh/Wh)	5.30	5.30	5.60	6.00
Energy rating	5 star	5 star	5 star	5 star
Power consumption (W)	870 (185 - 1,180)	1,165 (190 - 1,275)	1,590 (420 - 2,200)	1,965 (380 - 2,300)
Running current (A)	3.93 (1.47 - 5.30)	5.24 (1.44 - 5.71)	6.99 (2.74 - 9.67)	8.61 (2.40 - 10.1)
Airflow (cfm)	380	400	430	640
Indoor sound (dB(A))	38 / 33 / 26 / 19	39 / 34 / 26 / 21	42 / 39 / 32 / 29	43 / 41 / 36 / 30
Outdoor sound (dB(A))	48	48	49	52
Indoor dimensions H×W×D (mm)	288 x 770 x 246	288 x 770 x 246	288 x 770 x 246	297 x 990 x 288
Outdoor dimensions H×W×D (mm)	418 x 695 x 244	550 x 675 x 284	615 x 845 x 300	615 x 845 x 300
Indoor weight (kg)	9.0	9.0	9.5	13.0
Outdoor weight (kg)	18.0	21.0	37.0	37.0

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKP-0824-F, August 2024, revision F.

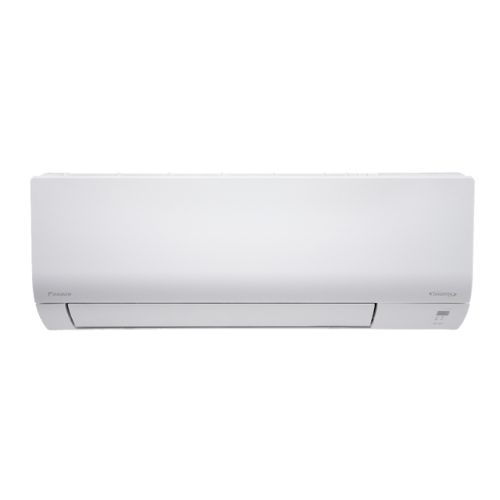

FTKF Series

Daikin's standard R32 inverter wall-mounted range, sold in five capacities from 9,000 to 25,600 Btu/h.

Best for: Bedrooms, living rooms and home offices

Capacity: 9,000–25,600 Btu/h
Models: 5

4–5 starCSPF 4.60–6.00

Specifications and model numbers

Smart control, in and out of home: A built-in network adaptor (AWM61A01) and the Daikin app allow control from inside or outside the home, with weekly scheduling and statistical energy-usage graphs.
Gin-ION Blue Filter: A silver-ion treated filter that Daikin's brochure states decomposes up to 99.9% of drawn-in viruses in 2 hours, tested by the Guangdong Detection Center of Microbiology.
Low/High Voltage Shield (Super PCB): Printed circuit boards rated to handle a 150V–440V supply variation, for durability on unstable supply.
Removable drain pan: The drain pan lifts out, which shortens routine cleaning.

Small offices, clinics and retail lots
Replacing an existing wall-mounted unit on the same pipe route

Model numbers (5)

FTKF Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKF25CV1M	RKF25CV1M9	9,000 (3,400 - 9,200) Btu/h
FTKF35CV1M	RKF35CV1M	12,300 (4,100 - 13,000) Btu/h
FTKF50CV1M	RKF50CV1M	18,000 (5,200 - 18,500) Btu/h
FTKF71CV1M	RKF71CV1M	24,000 (6,600 - 24,500) Btu/h
FTKF75CV1M	RKF75CV1M	25,600 (7,900 - 29,000) Btu/h

Full technical specifications

FTKF Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKF25CV1M	FTKF35CV1M	FTKF50CV1M	FTKF71CV1M	FTKF75CV1M
Indoor unit	FTKF25CV1M	FTKF35CV1M	FTKF50CV1M	FTKF71CV1M	FTKF75CV1M
Outdoor unit	RKF25CV1M9	RKF35CV1M	RKF50CV1M	RKF71CV1M	RKF75CV1M
Wireless model	FTKF25CV1MF	FTKF35CV1MF	FTKF50CV1MF	FTKF71CV1MF	FTKF75CV1MF
Wired model	FTKF25CV1MW	FTKF35CV1MW	FTKF50CV1MW	FTKF71CV1MW	Not stated in the official Daikin brochure.
Cooling capacity (kW)	2.64 (1.00 - 2.70)	3.60 (1.20 - 3.81)	5.28 (1.52 - 5.42)	7.03 (1.93 - 7.18)	7.50 (2.32 - 8.50)
Cooling capacity (Btu/h)	9,000 (3,400 - 9,200)	12,300 (4,100 - 13,000)	18,000 (5,200 - 18,500)	24,000 (6,600 - 24,500)	25,600 (7,900 - 29,000)
CSPF (Wh/Wh)	4.60	4.60	5.02	6.00	5.60
Energy rating	4 star	5 star	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Power consumption (W)	860 (200 - 960)	1,175 (200 - 1,285)	1,880 (380 - 1,950)	1,965 (380 - 2,300)	2,180 (520 - 2,580)
Running current (A)	3.87	5.27	8.24	8.61	9.71
Airflow (cfm)	340	400	430	640	700
Indoor sound (dB(A))	39 / 33 / 26 / 21	39 / 34 / 26 / 21	42 / 39 / 32 / 29	43 / 41 / 36 / 30	44 / 41 / 36 / 30
Outdoor sound (dB(A))	48	48	52	53	Not stated in the official Daikin brochure.
Indoor dimensions H×W×D (mm)	280 x 730 x 213	288 x 770 x 234	297 x 990 x 273	297 x 990 x 273	297 x 990 x 273
Outdoor dimensions H×W×D (mm)	418 x 695 x 244	550 x 675 x 284	615 x 845 x 300	695 x 930 x 350	Not stated in the official Daikin brochure.
Indoor weight (kg)	8.5	9.0	9.5	13.0	13.0
Outdoor weight (kg)	18.0	21.0	33.0	37.0	40.0

Control: Wireless models ship with a wireless remote (ARC486A1) and a built-in network adaptor (AWM61A01) for the Daikin app. Wired models ship with the SHIRO wired controller (BRC51D61); app control on a wired model additionally requires the optional NS Splitter (R50044157819).

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKF-0824-J, August 2024, revision J.

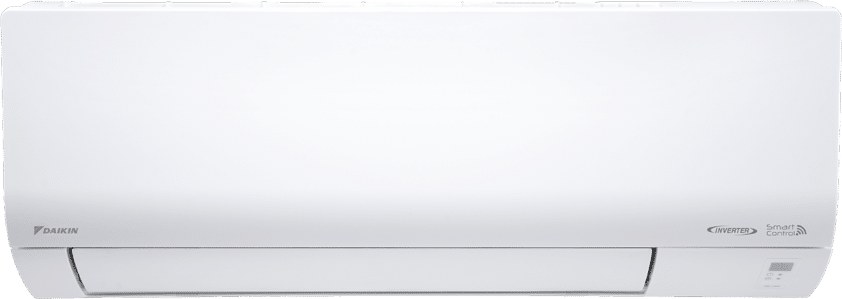

FTKB Series

An R32 inverter wall-mounted range in five capacities from 9,000 to 25,600 Btu/h.

Best for: Bedrooms and living areas where running cost is the deciding factor

Capacity: 9,000–25,600 Btu/h
Models: 5

4-starCSPF 4.50–5.60

Specifications and model numbers

CSPF up to 4.90: The 25 and 35 classes are rated 4.90 Wh/Wh, ahead of the 4.60 recorded for the equivalent FTKF capacities.
R32 refrigerant: Lower global warming potential than R410A and a single-component refrigerant, so it can be topped up rather than fully recovered and recharged.

Homes replacing older non-inverter units
Small commercial spaces on a single-split layout

Model numbers (5)

FTKB Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKB25AV1M	RKB25AV1M	9,000 (3,500 - 9,200) Btu/h
FTKB35AV1M	RKB35AV1M	12,300 (4,100 - 12,800) Btu/h
FTKB50AV1M	RKB50AV1M	18,000 (5,600 - 18,500) Btu/h
FTKB71AV1M	RKB71AV1M	24,000 (6,600 - 24,500) Btu/h
FTKB75AV1M	RKB75AV1M	25,600 (7,900 - 29,000) Btu/h

Full technical specifications

FTKB Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKB25AV1M	FTKB35AV1M	FTKB50AV1M	FTKB71AV1M	FTKB75AV1M
Indoor unit	FTKB25AV1M	FTKB35AV1M	FTKB50AV1M	FTKB71AV1M	FTKB75AV1M
Outdoor unit	RKB25AV1M	RKB35AV1M	RKB50AV1M	RKB71AV1M	RKB75AV1M
Cooling capacity (kW)	2.64 (1.03 - 2.70)	3.60 (1.20 - 3.75)	5.28 (1.64 - 5.42)	7.03 (1.93 - 7.18)	7.50 (2.32 - 8.50)
Cooling capacity (Btu/h)	9,000 (3,500 - 9,200)	12,300 (4,100 - 12,800)	18,000 (5,600 - 18,500)	24,000 (6,600 - 24,500)	25,600 (7,900 - 29,000)
CSPF (Wh/Wh)	4.90	4.90	4.57	4.50	5.60
Energy rating	4 star	4 star	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Power consumption (W)	890 (255 - 960)	1,160 (250 - 1,240)	1,650 (420 - 1,700)	2,160 (380 - 2,300)	2,180 (520 - 2,580)
Running current (A)	3.96 (2.08 - 4.28)	5.50 (2.37 - 5.88)	7.29 (2.41 - 7.52)	9.49 (2.40 - 10.1)	9.71 (2.56 - 11.4)
Airflow (cfm)	340	400	430	640	700
Indoor sound (dB(A))	39 / 33 / 26 / 21	40 / 35 / 28 / 23	42 / 39 / 32 / 29	43 / 41 / 36 / 30	44 / 41 / 36 / 30
Outdoor sound (dB(A))	48	49	52	53	53
Indoor dimensions H×W×D (mm)	280 x 730 x 213	288 x 770 x 234	297 x 990 x 273	297 x 990 x 273	297 x 990 x 273
Outdoor dimensions H×W×D (mm)	460 x 650 x 240	550 x 675 x 284	615 x 845 x 300	695 x 930 x 350	695 x 930 x 350
Indoor weight (kg)	8.0	9.0	9.5	13.0	13.0

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKB-1225-A, December 2025, revision A.

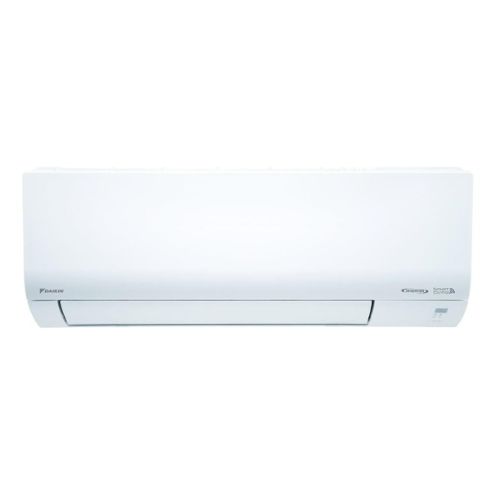

FTKE Series

An R32 inverter wall-mounted range covering 9,000 to 24,000 Btu/h across four capacities, at a consistent CSPF of 4.20.

Best for: Bedrooms and living rooms

Capacity: 9,000–24,000 Btu/h
Models: 4

3–4 starCSPF 4.20

Specifications and model numbers

One efficiency figure across the range: All four capacities are rated CSPF 4.20, which simplifies specification when a project needs several different sizes.
R32 refrigerant: Single-component refrigerant with lower global warming potential than R410A.

Straightforward residential replacements
Projects specifying one series across mixed room sizes

Model numbers (4)

FTKE Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKE25AV1M	RKE25AV1M	9,000 (3,500 - 9,200) Btu/h
FTKE35AV1M	RKE35AV1M	12,300 (4,100 - 12,800) Btu/h
FTKE50AV1M	RKE50AV1M	18,000 (5,200 - 18,500) Btu/h
FTKE71AV1M	RKE71AV1M	24,000 (6,600 - 24,500) Btu/h

Full technical specifications

FTKE Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTKE25AV1M	FTKE35AV1M	FTKE50AV1M	FTKE71AV1M
Indoor unit	FTKE25AV1M	FTKE35AV1M	FTKE50AV1M	FTKE71AV1M
Outdoor unit	RKE25AV1M	RKE35AV1M	RKE50AV1M	RKE71AV1M
Wireless model	FTKE25AV1MF	FTKE35AV1MF	FTKE50AV1MF	FTKE71AV1MF
Wired model	FTKE25AV1MW	FTKE35AV1MW	FTKE50AV1MW	FTKE71AV1MW
Cooling capacity (kW)	2.64 (1.03 - 2.70)	3.60 (1.20 - 3.75)	5.28 (1.52 - 5.42)	7.03 (1.93 - 7.18)
Cooling capacity (Btu/h)	9,000 (3,500 - 9,200)	12,300 (4,100 - 12,800)	18,000 (5,200 - 18,500)	24,000 (6,600 - 24,500)
CSPF (Wh/Wh)	4.20	4.20	4.20	4.20
Energy rating	3 star	3 star	4 star	4 star
Power consumption (W)	890 (255 - 980)	1,245 (255 - 1,330)	2,130 (380 - 2,180)	2,160 (380 - 2,300)
Running current (A)	4.00 (1.65 - 4.39)	5.52 (1.75 - 5.88)	9.34 (2.72 - 9.54)	9.49 (2.40 - 10.1)
Airflow (cfm)	340	350	430	640
Indoor sound (dB(A))	39 / 33 / 26 / 21	40 / 35 / 28 / 23	42 / 39 / 32 / 29	43 / 41 / 36 / 30
Outdoor sound (dB(A))	48	52	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Indoor dimensions H×W×D (mm)	280 x 730 x 213	288 x 770 x 234	297 x 990 x 273	297 x 990 x 273
Indoor weight (kg)	8.0	8.5	9.5	13.0

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTKE-0724-A, July 2024, revision A.

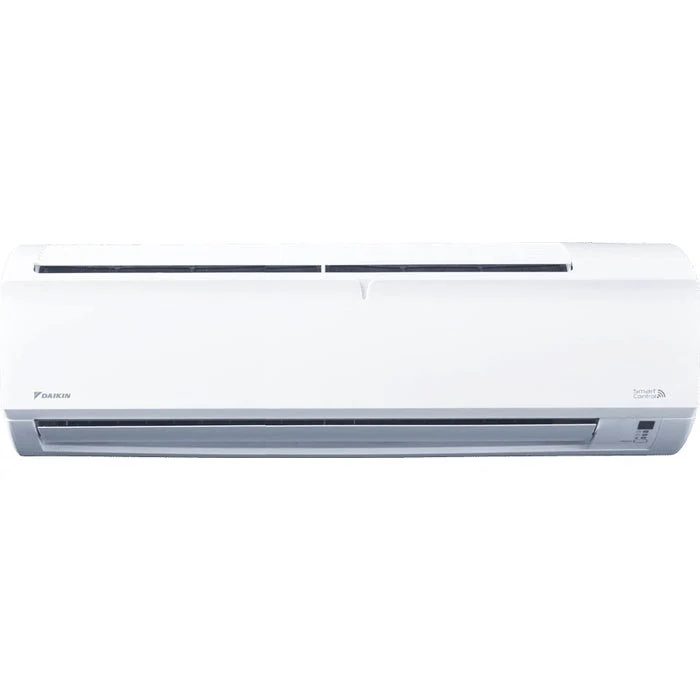

FTV-P Series

Daikin's R32 non-inverter wall-mounted range, in five capacities from 9,500 to 30,000 Btu/h.

Best for: Rooms used in short bursts rather than continuously

Capacity: 9,500–30,000 Btu/h
Models: 5

3-starCSPF 3.22–3.59

Specifications and model numbers

Largest capacity in the wall-mounted line-up: The FTV85 class delivers 30,000 Btu/h — above the 25,600 Btu/h ceiling of the inverter wall-mounted series in this catalogue.
Fixed-speed operation: The compressor runs at one output. Where a room is occupied intermittently, this avoids paying an inverter premium that longer run hours would be needed to recover.

Rental units and back-of-house areas
Budget-led replacements where inverter payback does not apply

Model numbers (5)

FTV-P Series — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTV28PBV1M	RV28PBV1M9	9,500 Btu/h
FTV35PBV1M	RV35PBV1M9	12,000 Btu/h
FTV50PBV1M	RV50PBV1M	18,000 Btu/h
FTV60PBV1M	RV60PBV1M	22,500 Btu/h
FTV85PBV1M	RC85BV1M	30,000 Btu/h

Full technical specifications

FTV-P Series — full technical specifications, transcribed from the official Daikin brochure.
Specification	FTV28PBV1M	FTV35PBV1M	FTV50PBV1M	FTV60PBV1M	FTV85PBV1M
Indoor unit	FTV28PBV1M	FTV35PBV1M	FTV50PBV1M	FTV60PBV1M	FTV85PBV1M
Outdoor unit	RV28PBV1M9	RV35PBV1M9	RV50PBV1M	RV60PBV1M	RC85BV1M
Wireless model	FTV28PBV1MF9	FTV35PBV1MF9	FTV50PBV1MF	FTV60PBV1MF	FTV85PBV1MF
Wired model	FTV28PBV1MW9	FTV35PBV1MW9	FTV50PBV1MW	FTV60PBV1MW	FTV85PBV1MW
Cooling capacity (kW)	2.78	3.52	5.28	6.59	8.79
Cooling capacity (Btu/h)	9,500	12,000	18,000	22,500	30,000
CSPF (Wh/Wh)	3.42	3.59	3.37	3.22	3.28
Energy rating	3 star	3 star	3 star	3 star	3 star
Power consumption (W)	865	1,040	1,660	2,130	2,900
Running current (A)	3.86	4.61	7.38	13.10	9.52
Airflow (cfm)	342	355	531	931	614
Indoor sound (dB(A))	37 / 33 / 27 / 25	39 / 35 / 29 / 28	42 / 39 / 36 / 35	51 / 46 / 42 / 39	46 / 43 / 39 / 37
Outdoor sound (dB(A))	46	48	52	54	52
Indoor dimensions H×W×D (mm)	288 x 800 x 212	288 x 800 x 212	310 x 1,065 x 228	310 x 1,065 x 228	310 x 1,289 x 240
Outdoor dimensions H×W×D (mm)	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	550 x 658 x 273	615 x 845 x 300	695 x 930 x 350
Indoor weight (kg)	9.0	9.0	14.0	16.0	16.0
Outdoor weight (kg)	28	28	40	46	53

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FTV-0724-T, July 2024, revision T.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Multi Split

Several indoor units on one outdoor unit. Specified where only one condenser position exists or where building management limits the number of outdoor units.

Specified for: Apartments and condominiums with a single condenser ledge; Terraced homes serving several bedrooms from one plant location.

MKM Series — Multi-Split (DC Inverter)

DC inverter multi-split: two to five FTKM indoor units on one MKM outdoor unit.

Compressor: Inverter
Refrigerant: —
Capacity: —
Energy rating: —
Models: 6
Best for: Apartments and terraced homes with one usable condenser position

Specifications and model numbers

695 mm lowline outdoor units: The 6.5 and 8.0 kW classes clear a 720 mm window opening, which matters when a condenser has to be carried through an apartment.
60–80 m total piping length: Maximum total piping run of 60 to 80 m with a 15 m level difference, which gives freedom in placing indoor units far from the plant position.
One outdoor unit, several rooms: Multiple indoor units on one refrigerant circuit — the reason this format is specified where roof or ledge space allows only one condenser.

Model numbers (6)

MKM Series — Multi-Split (DC Inverter) — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FTKM25PVM	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	Class 25 — kW figure not stated in the official Daikin brochure.
FTKM35PVM	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	Class 35 — kW figure not stated in the official Daikin brochure.
FTKM42PVM	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	Class 42 — kW figure not stated in the official Daikin brochure.
FTKM50PVM	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	Class 50 — kW figure not stated in the official Daikin brochure.
FTKM60PVM	MKM80PVM / MKM95PVM / MKM105PVM	Class 60 — kW figure not stated in the official Daikin brochure.
FTKM71PVM	MKM95PVM / MKM105PVM	Class 71 — kW figure not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure MKM-0520-C, May 2020, revision C.

MKC Series — Multi-Split

A multi-split range pairing CTKC indoor units with one MKC outdoor unit, in two outdoor classes.

Compressor: Non-Inverter
Refrigerant: R32
Capacity: —
Energy rating: —
Models: 3
Best for: Apartments and condominiums with one usable condenser position

Specifications and model numbers

Two outdoor classes: MKC50RVM at 5.0 kW rated cooling (8.5 kW maximum connected indoor capacity) and MKC70SVM at 7.0 kW (12.0 kW maximum).
Power-Airflow Dual Flap on the 50 class: The brochure records the Dual Flap on CTKC50SVM and the single Power-Airflow Flap on CTKC25/35RVM.
Standby electricity saving: Reduces the standby power an idle indoor unit draws, per the brochure's function list.

Model numbers (3)

MKC Series — Multi-Split — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
CTKC25RVM	MKC50RVM / MKC70SVM	2.5 kW class
CTKC35RVM	MKC50RVM / MKC70SVM	3.5 kW class
CTKC50SVM	MKC70SVM	5.0 kW class

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure MKC-0520-C, May 2020, revision C.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

SkyAir Cassette

Ceiling-recessed units that discharge across the ceiling plane. Chosen where a wall unit would be visually intrusive or where distribution from a central point suits the room.

Specified for: Restaurants, cafés and retail floors; Offices, meeting rooms and clinics on a suspended ceiling.

Flagship

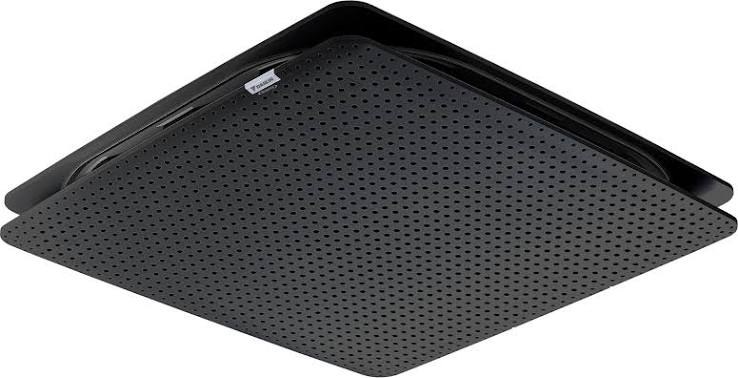

FCFG Series — REVO Max Surround Cassette

Daikin's flagship R32 inverter surround-flow cassette, in seven capacities from 18,500 to 48,000 Btu/h.

Capacity: 18,500–48,000 Btu/h
Models: 7
Refrigerant: R32

Premium White or Premium Black panel — BCR50GMF (white) or BCR50GMFK (black) fits every capacity in the range. The unit is identical; only the visible panel changes.
Surround airflow — Discharge around the full perimeter of the panel rather than from four fixed louvres, which evens out distribution beneath the unit.
Built-in drain pump — A water pump is fitted as standard, which gives freedom in routing the condensate drain rather than constraining the unit position to the fall available.

Specifications and model numbers

Model numbers (7)

FCFG Series — REVO Max Surround Cassette — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FCFG50AV1MF9	RZFG50AGVMM	18,500 (7,800-19,100) Btu/h
FCFG60AV1MF9	RZFG60AGVMM	20,500 (8,900-21,500) Btu/h
FCFG71AV1MF9	RZFG71AGVMM	24,200 (10,900-27,300) Btu/h
FCFG85AV1MF9	RZFG85AVMM	30,000 (14,300-34,100) Btu/h
FCFG100AV1MF	RZFG100AVMM	36,000 (17,100-38,200) Btu/h
FCFG125AV1MF	RZFG125AY1M	42,000 (19,500-47,800) Btu/h
FCFG140AV1MF	RZFG140AY1M	48,000 (21,200-52,900) Btu/h

Full technical specifications

FCFG Series — REVO Max Surround Cassette — full technical specifications, transcribed from the official Daikin brochure.
Specification	FCFG50AV1MF9	FCFG60AV1MF9	FCFG71AV1MF9	FCFG85AV1MF9	FCFG100AV1MF	FCFG125AV1MF	FCFG140AV1MF
Indoor unit	FCFG50AV1MF9	FCFG60AV1MF9	FCFG71AV1MF9	FCFG85AV1MF9	FCFG100AV1MF	FCFG125AV1MF	FCFG140AV1MF
Outdoor unit	RZFG50AGVMM	RZFG60AGVMM	RZFG71AGVMM	RZFG85AVMM	RZFG100AVMM	RZFG125AY1M	RZFG140AY1M
Cooling capacity (kW)	5.42 (2.30-5.60)	6.00 (2.30-6.30)	7.10 (3.20-8.00)	8.79 (4.20-10.00)	10.55 (5.00-11.20)	12.31 (5.70-14.00)	14.07 (6.20-15.50)
Cooling capacity (Btu/h)	18,500 (7,800-19,100)	20,500 (8,900-21,500)	24,200 (10,900-27,300)	30,000 (14,300-34,100)	36,000 (17,100-38,200)	42,000 (19,500-47,800)	48,000 (21,200-52,900)
CSPF (Wh/Wh)	4.47	4.34	4.78	4.67	4.68	4.29	4.10
Power consumption (W)	1,680	1,960	2,070	2,710	3,470	4,215	5,455
Running current (A)	7.37	8.55	9.07	12.0	15.3	6.48	8.38
Airflow (cfm)	855 / 715 / 595 / 470	855 / 715 / 595 / 470	855 / 715 / 595 / 470	855 / 715 / 595 / 470	1,075 / 960 / 830 / 720	1,075 / 960 / 830 / 720	1,075 / 960 / 830 / 720
Indoor sound (dB(A))	44 / 40 / 37 / 34	44 / 40 / 37 / 34	44 / 40 / 37 / 35	44 / 40 / 37 / 35	48 / 46 / 43 / 40	48 / 46 / 43 / 40	48 / 46 / 43 / 40
Outdoor sound (dB(A))	52	52	52	53	54	54	56
Indoor dimensions H×W×D (mm)	246 x 840 x 840 (panel 135 x 962 x 962)	246 x 840 x 840 (panel 135 x 962 x 962)	246 x 840 x 840 (panel 135 x 962 x 962)	246 x 840 x 840 (panel 135 x 962 x 962)	288 x 840 x 840 (panel 135 x 962 x 962)	288 x 840 x 840 (panel 135 x 962 x 962)	288 x 840 x 840 (panel 135 x 962 x 962)
Outdoor dimensions H×W×D (mm)	615 x 845 x 300	615 x 845 x 300	615 x 845 x 300	695 x 930 x 350	695 x 930 x 350	990 x 940 x 320	990 x 940 x 320
Indoor weight (kg)	22.0 (panel 8.5)	22.0 (panel 8.5)	22.0 (panel 8.5)	22.0 (panel 8.5)	25.0 (panel 8.5)	25.0 (panel 8.5)	25.0 (panel 8.5)
Outdoor weight (kg)	37.0	37.0	37.0	40.0	40.0	62.0	62.0

Control: Wi-Fi control is available and, per the brochure, is compatible with the DAMA app only. Wireless remote is standard; BRC-series wired controllers are listed as optional.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FCFG-0825-E, August 2025, revision E.

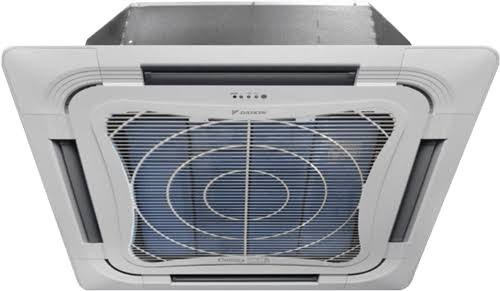

FCFC A-Series — Inverter Ceiling Cassette

Daikin's R32 inverter ceiling cassette, in seven capacities from 18,500 to 48,000 Btu/h with 8-way airflow.

Best for: Offices, retail floors and restaurants on a suspended ceiling

Capacity: 18,500–48,000 Btu/h
Models: 7

Specifications and model numbers

8-way airflow: Discharge in eight directions rather than four, which the brochure records as giving even distribution and faster pull-down.
CSPF up to 4.78: The 71 class is rated 4.78 Wh/Wh; the range runs from 4.10 at the 140 class to 4.78.
Auto-restart with surge protection: After a power failure the unit restarts to its last settings, with 64 recovery patterns staggered to avoid a simultaneous surge.
Selectable external static pressure: Two ESP settings selected by a connector inside the control box, so the same unit suits different duct designs.

Rooms needing even distribution from one central ceiling position
Projects standardising cassette and ducted indoor types on one outdoor range

Model numbers (7)

FCFC A-Series — Inverter Ceiling Cassette — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FCFC50AV1MF	RZFC50AGVMM	18,500 (7,800-19,100) Btu/h
FCFC60AV1MF	RZFC60AGVMM	20,500 (8,900-21,500) Btu/h
FCFC71AV1MF	RZFC71AGVMM	24,200 (10,900-27,300) Btu/h
FCFC85AV1MF	RZFC85AVMM	30,000 (14,300-34,100) Btu/h
FCFC100AV1MF	RZFC100AVMM	36,000 (17,100-38,200) Btu/h
FCFC125AV1MF	RZFC125AY1M	42,000 (19,500-47,800) Btu/h
FCFC140AV1MF	RZFC140AY1M	48,000 (21,200-52,900) Btu/h

Full technical specifications

FCFC A-Series — Inverter Ceiling Cassette — full technical specifications, transcribed from the official Daikin brochure.
Specification	FCFC50AV1MF	FCFC60AV1MF	FCFC71AV1MF	FCFC85AV1MF	FCFC100AV1MF	FCFC125AV1MF	FCFC140AV1MF
Indoor unit	FCFC50AV1MF	FCFC60AV1MF	FCFC71AV1MF	FCFC85AV1MF	FCFC100AV1MF	FCFC125AV1MF	FCFC140AV1MF
Outdoor unit	RZFC50AGVMM	RZFC60AGVMM	RZFC71AGVMM	RZFC85AVMM	RZFC100AVMM	RZFC125AY1M	RZFC140AY1M
Wireless model	BCR50FMF panel	BCR50FMF panel	BCR50FMF panel	BCR50FMF panel	BCR50FMF panel	BCR50FMF panel	BCR50FMF panel
Wired model	BCR50FMW panel	BCR50FMW panel	BCR50FMW panel	BCR50FMW panel	BCR50FMW panel	BCR50FMW panel	BCR50FMW panel
Cooling capacity (kW)	5.42 (2.30-5.60)	6.00 (2.60-6.30)	7.10 (3.20-8.00)	8.79 (4.20-10.00)	10.55 (5.00-11.20)	12.31 (5.70-14.00)	14.07 (6.20-15.50)
Cooling capacity (Btu/h)	18,500 (7,800-19,100)	20,500 (8,900-21,500)	24,200 (10,900-27,300)	30,000 (14,300-34,100)	36,000 (17,100-38,200)	42,000 (19,500-47,800)	48,000 (21,200-52,900)
CSPF (Wh/Wh)	4.47	4.34	4.78	4.67	4.68	4.29	4.10
Power consumption (W)	1,680	1,960	2,070	2,710	3,470	4,215	5,455
Running current (A)	7.37	8.55	9.07	12.00	15.30	6.48	8.38
Airflow (cfm)	890 / 760 / 620 / 490	890 / 760 / 620 / 490	890 / 760 / 620 / 490	890 / 760 / 620 / 490	1,120 / 1,030 / 890 / 760	1,120 / 1,030 / 890 / 760	1,120 / 1,030 / 890 / 760
Indoor sound (dB(A))	44 / 40 / 37 / 35	44 / 40 / 37 / 35	44 / 40 / 37 / 35	44 / 40 / 37 / 35	48 / 46 / 43 / 40	48 / 46 / 43 / 40	48 / 46 / 43 / 40
Outdoor sound (dB(A))	52	52	52	53	54	54	56
Indoor dimensions H×W×D (mm)	246 x 840 x 840 (with panel 305 x 950 x 950)	246 x 840 x 840 (with panel 305 x 950 x 950)	246 x 840 x 840 (with panel 305 x 950 x 950)	246 x 840 x 840 (with panel 305 x 950 x 950)	288 x 840 x 840 (with panel 347 x 950 x 950)	288 x 840 x 840 (with panel 347 x 950 x 950)	288 x 840 x 840 (with panel 347 x 950 x 950)
Outdoor dimensions H×W×D (mm)	615 x 845 x 300	615 x 845 x 300	615 x 845 x 300	695 x 930 x 350	695 x 930 x 350	990 x 940 x 320	990 x 940 x 320
Indoor weight (kg)	22 (with panel 27)	22 (with panel 27)	22 (with panel 27)	22 (with panel 27)	25 (with panel 30)	25 (with panel 30)	25 (with panel 30)
Outdoor weight (kg)	37	37	37	40	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.

Control: Wireless or wired decoration panel variants (BCR50FMF / BCR50FMW). The brochure lists a weekly timer on the wired controller and an indoor-unit ON/OFF button on the unit itself.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RC-0921-H, September 2021, revision H.

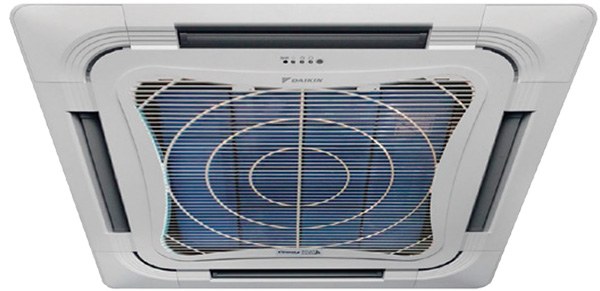

FCC-A Series — Ceiling Cassette

SkyAir inverter ceiling cassettes listed in the single-split catalogue, sharing the RC/RZFC outdoor range with the ducted FDMFC series.

Best for: Offices, shops and clinics on a suspended ceiling

Models: 6

Specifications and model numbers

Shares the SkyAir outdoor range: Cassette and ducted indoor units draw on the same RC/RZFC outdoor units, which simplifies spares and service across a mixed installation.

Projects standardising on one SkyAir outdoor range across cassette and ducted indoor types

Model numbers (6)

FCC-A Series — Ceiling Cassette — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FCC50AV1M8	RC50BV1M	Not stated in the official Daikin brochure.
FCC60AV1M8	RC60BV1M	Not stated in the official Daikin brochure.
FCC85AV1M8	RC85BV1M	Not stated in the official Daikin brochure.
FCC100AV1M8	RC100BV1M	Not stated in the official Daikin brochure.
FCC125AV1M8	RC125BY1M	Not stated in the official Daikin brochure.
FCC140AV1M8	RC140BY1M	Not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RC-0921-H, September 2021, revision H.

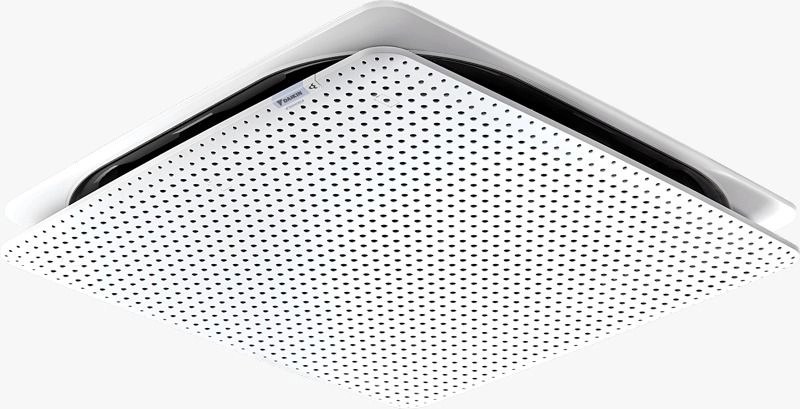

FCFV Series — Ceiling Cassette (Non-Inverter)

SkyAir non-inverter ceiling cassettes, listed across eleven capacity classes with matching RGFV outdoor units.

Best for: Function rooms, halls and premises with scheduled operating hours

Models: 11

Specifications and model numbers

Eleven capacity classes: From class 18 to class 125, which is the widest class spread of any single cassette series in this catalogue set.

Budget-led commercial fit-outs where inverter payback does not apply

Model numbers (11)

FCFV Series — Ceiling Cassette (Non-Inverter) — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FCFV18AV1S	RGFV18AV1S	Class 18 — kW figure not stated in the official Daikin brochure.
FCFV24AV1S	RGFV24AV1S	Class 24 — kW figure not stated in the official Daikin brochure.
FCFV30AV1S	RGFV30AV1S	Class 30 — kW figure not stated in the official Daikin brochure.
FCFV36AV1S	RGFV36AV1S	Class 36 — kW figure not stated in the official Daikin brochure.
FCFV42AV1S	RGFV42AY1S	Class 42 — kW figure not stated in the official Daikin brochure.
FCFV46AV1S	RGFV46AY1S	Class 46 — kW figure not stated in the official Daikin brochure.
FCFV50AV1MF	RGFV50AV1M	Class 50 — kW figure not stated in the official Daikin brochure.
FCFV60AV1MF	RGFV60AV1M	Class 60 — kW figure not stated in the official Daikin brochure.
FCFV85AV1MF	RGFV85AV1M	Class 85 — kW figure not stated in the official Daikin brochure.
FCFV100AV1MF	RGFV100AV1M	Class 100 — kW figure not stated in the official Daikin brochure.
FCFV125AV1MF	RGFV125AY1M	Class 125 — kW figure not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FCFV-1221-A, December 2021, revision A.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Ceiling Concealed Duct

The unit sits inside the ceiling void and delivers through ductwork to grilles. Nothing of the equipment is visible in the finished room.

Specified for: Designer-led interiors where the ceiling is resolved; Premium residential and hotel rooms; One unit serving several small rooms through ductwork.

FDMFC-A Series — Ceiling Concealed Duct

R32 inverter ducted units that sit entirely inside the ceiling void, with supply and return through grilles.

Compressor: Inverter
Refrigerant: R32
Capacity: 18,500–48,000 Btu/h
Energy rating: —
Models: 7
Best for: Rooms where nothing should be visible but the grilles

Specifications and model numbers

Nothing visible but the grilles: The unit sits above the ceiling. Where a designer has resolved the ceiling, this is the format that does not interrupt it.
30/50 Pa external static pressure: Standard and high settings are both listed, which determines how far ductwork can be run and how many outlets one unit can feed.
CSPF up to 4.76: The 85 class is rated 4.76 Wh/Wh.

Model numbers (7)

FDMFC-A Series — Ceiling Concealed Duct — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FDMFC50AV1M	RZFC50AGVMM	18,500 (7,800-19,100) Btu/h
FDMFC60AV1M	RZFC60AGVMM	20,500 (8,900-21,500) Btu/h
FDMFC71AV1M	RZFC71AGVMM	24,200 (10,900-27,300) Btu/h
FDMFC85AV1M	RZFC85AVMM	30,000 (14,300-34,100) Btu/h
FDMFC100AV1M	RZFC100AVMM	36,000 (17,100-38,200) Btu/h
FDMFC125AV1M	RZFC125AY1M	42,000 (19,500-47,800) Btu/h
FDMFC140AV1M	RZFC140AY1M	48,000 (21,200-52,900) Btu/h

Full technical specifications

FDMFC-A Series — Ceiling Concealed Duct — full technical specifications, transcribed from the official Daikin brochure.
Specification	FDMFC50AV1M	FDMFC60AV1M	FDMFC71AV1M	FDMFC85AV1M	FDMFC100AV1M	FDMFC125AV1M	FDMFC140AV1M
Indoor unit	FDMFC50AV1M	FDMFC60AV1M	FDMFC71AV1M	FDMFC85AV1M	FDMFC100AV1M	FDMFC125AV1M	FDMFC140AV1M
Outdoor unit	RZFC50AGVMM	RZFC60AGVMM	RZFC71AGVMM	RZFC85AVMM	RZFC100AVMM	RZFC125AY1M	RZFC140AY1M
Cooling capacity (kW)	5.42 (2.30-5.60)	6.00 (2.60-6.30)	7.10 (3.20-8.00)	8.79 (4.20-10.00)	10.55 (5.00-11.20)	12.31 (5.70-14.00)	14.07 (6.20-15.50)
Cooling capacity (Btu/h)	18,500 (7,800-19,100)	20,500 (8,900-21,500)	24,200 (10,900-27,300)	30,000 (14,300-34,100)	36,000 (17,100-38,200)	42,000 (19,500-47,800)	48,000 (21,200-52,900)
CSPF (Wh/Wh)	4.16	4.13	4.36	4.76	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Power consumption (W)	1,940	2,300	2,150	2,770	3,520	4,680	5,390
Running current (A)	8.51	10.10	9.20	12.40	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Airflow (cfm)	590 / 525 / 430	590 / 525 / 430	950 / 810 / 700	950 / 810 / 700	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Indoor sound (dB(A))	40 / 37 / 34	40 / 37 / 34	41 / 38 / 35	41 / 38 / 35	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Outdoor sound (dB(A))	52	52	52	53	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Indoor dimensions H×W×D (mm)	250 x 700 x 700	250 x 700 x 700	250 x 1,000 x 700	250 x 1,000 x 700	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Outdoor dimensions H×W×D (mm)	615 x 845 x 300	615 x 845 x 300	615 x 845 x 300	695 x 930 x 350	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Indoor weight (kg)	24	24	31	31	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.
Outdoor weight (kg)	37	37	37	40	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.	Not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RC-0921-H, September 2021, revision H.

FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)

SkyAir non-inverter ducted units covering seven capacity classes to class 160, plus the compact FDBC 25 and 35 classes for small rooms.

Compressor: Non-Inverter
Refrigerant: R32
Capacity: —
Energy rating: —
Models: 9
Best for: Concealed installations where inverter payback does not apply

Specifications and model numbers

Class 25 to class 160: The FDBC 25 and 35 classes cover single small rooms; FDMC runs from 50 to 160 for larger areas.

Model numbers (9)

FDMC-A Series — Ceiling Concealed Duct (Non-Inverter) — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FDBC25AV1M	RC25AV1M	Class 25 — kW figure not stated in the official Daikin brochure.
FDBC35AV1M	RC35AV1M	Class 35 — kW figure not stated in the official Daikin brochure.
FDMC50AV1M	RC50AV1M	Class 50 — kW figure not stated in the official Daikin brochure.
FDMC60AV1M	RC60AV1M	Class 60 — kW figure not stated in the official Daikin brochure.
FDMC85AV1M	RC85AV1M	Class 85 — kW figure not stated in the official Daikin brochure.
FDMC100AV1M	RC100AV1M	Class 100 — kW figure not stated in the official Daikin brochure.
FDMC125AV1M	RC125AY1M	Class 125 — kW figure not stated in the official Daikin brochure.
FDMC140AV1M	RC140AY1M	Class 140 — kW figure not stated in the official Daikin brochure.
FDMC160AV1M	RC160AY1M	Class 160 — kW figure not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RC-0821-G, August 2021, revision G.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Ceiling Suspended

Mounted below the ceiling slab and discharging horizontally along it. Used where there is no ceiling void to conceal a unit and no suitable wall.

Specified for: Shop lots and workshops with exposed soffits; Rooms with high ceilings and limited wall space.

FHA-B Series — Ceiling Suspended (Inverter)

SkyAir inverter ceiling-suspended units in six capacity classes, mounted below the slab and discharging horizontally along the ceiling.

Compressor: Inverter
Refrigerant: R32
Capacity: —
Energy rating: —
Models: 6
Best for: Shop lots and units with exposed soffits and no ceiling void

Specifications and model numbers

No ceiling void required: The unit mounts to the slab. Where a ducted or cassette unit cannot be used because there is nothing to recess into, this is the format that fits.
Horizontal throw along the ceiling: Air is discharged along the ceiling plane rather than down at occupants, which suits rooms that are long relative to their width.

Model numbers (6)

FHA-B Series — Ceiling Suspended (Inverter) — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FHA50BVMA	RZF50CVM	Class 50 — kW figure not stated in the official Daikin brochure.
FHA60BVMA	RZF60CVM	Class 60 — kW figure not stated in the official Daikin brochure.
FHA71BVMA	RZF71C	Class 71 — kW figure not stated in the official Daikin brochure.
FHA100BVMA	RZF100CVM	Class 100 — kW figure not stated in the official Daikin brochure.
FHA125BVMA	RZF125CVM	Class 125 — kW figure not stated in the official Daikin brochure.
FHA140BVMA	RZF140CVM	Class 140 — kW figure not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RZF-1217-A, December 2017, revision A.

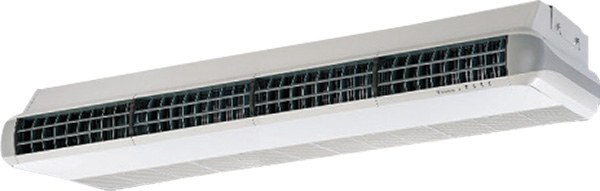

FHC-A Series — Ceiling Suspended (Non-Inverter)

SkyAir non-inverter ceiling-suspended units in seven capacity classes up to class 160 — the largest single-split capacity in this catalogue set.

Compressor: Non-Inverter
Refrigerant: R32
Capacity: —
Energy rating: —
Models: 7
Best for: Large shop lots, workshops and warehouses with exposed soffits

Specifications and model numbers

Up to class 160: The largest single-split indoor capacity across these catalogues, for spaces a 140 class cannot cover from one unit.

Model numbers (7)

FHC-A Series — Ceiling Suspended (Non-Inverter) — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FHC50AV1M	RC50AV1M	Class 50 — kW figure not stated in the official Daikin brochure.
FHC60AV1M	RC60AV1M	Class 60 — kW figure not stated in the official Daikin brochure.
FHC85AV1M	RC85AV1M	Class 85 — kW figure not stated in the official Daikin brochure.
FHC100AV1M	RC100AV1M	Class 100 — kW figure not stated in the official Daikin brochure.
FHC125AV1M	RC125AY1M	Class 125 — kW figure not stated in the official Daikin brochure.
FHC140AV1M	RC140AY1M	Class 140 — kW figure not stated in the official Daikin brochure.
FHC160AV1M	RC160AY1M	Class 160 — kW figure not stated in the official Daikin brochure.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure RC-0821-G, August 2021, revision G.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Floor Standing

Free-standing units delivering high airflow at low level. Specified for large open spaces with no usable ceiling.

4 models

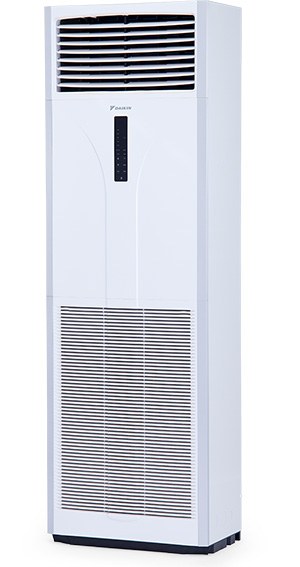

FVC-A Series — Floor Standing

R32 non-inverter floor-standing units in four capacity classes covering 29,000 to 48,000 Btu/h.

Best for: Halls, surau, workshops and showrooms with no suitable ceiling

Capacity: 29,000–48,000 Btu/h
Models: 4

Specifications and model numbers

Full 4TR at the 140 class: R32 raises the 140 class from 45,000 Btu/h under R410A to 48,000 Btu/h — the brochure states this as a full 4 tons of refrigeration.
11% average EER improvement: The brochure records average EER rising from 2.89 on R410A to 3.24 on R32 across the range.
High airflow: Stated as bringing large spaces down to setpoint rapidly, which is the reason this format is specified over ceiling units in halls.

Spaces needing high airflow reaching across a large floor area
Replacements where existing pipework runs at low level

Model numbers (4)

FVC-A Series — Floor Standing — model numbers with cooling capacity.
Indoor unit	Outdoor unit	Cooling capacity
FVC85AV1M9	RC85BY1M / RC85AGY1M	29,000 Btu/h
FVC100AV1M	RC100BY1M / RC100AGY1M	36,000 Btu/h
FVC125AV1M	RC125BY1M9 / RC125AGY1M9	42,000 Btu/h
FVC140AV1M	RC140BY1M9 / RC140AGY1M9	48,000 (full 4TR) Btu/h

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure FVC-0425-C, April 2025, revision C.

Send us the room and the ceiling. We will size it and name the model.

Get a recommendation

Daikin flagship commercial system

VRV / VRF

One outdoor system driving many indoor units of mixed type, each independently controlled. The format specified for whole floors, whole buildings and multi-zone fit-outs.

Specified for: Office floors and multi-tenant buildings; F&B outlets with kitchen, dining and private rooms on one system; Premium residential whole-house systems.

Single circuit range: 6–78HP
Indoor unit families: 13
Model numbers: 155

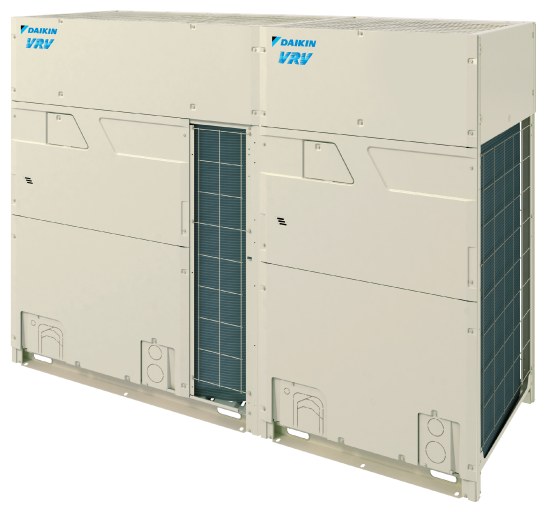

A Daikin VRV 6 X double-module outdoor unit.

Flagship

VRV 6 X Series — Outdoor

Daikin's highest-efficiency VRV outdoor range, cooling only.

Capacity: 54,600–573,000 Btu/h
Models: 28
Refrigerant: R410A

EER up to 5.37 — Outdoor EER by capacity: 5.37 at 6HP, 5.35 at 8HP, 5.11 at 10HP, 4.58 at 12HP, 4.76 at 14HP, 4.65 at 16HP, 4.39 at 18HP, 4.38 at 20HP — an average improvement of about 12.9% over the previous generation.
Silver HeatX parallel flow condenser — A flat-channel heat exchanger in place of cross-fin, using 31.3% less refrigerant. Certified to ISO 12944-6:2018 and ISO 9227:2017, having passed a 1,440-hour salt spray test at C5 level.
VRT Smart II control — Refrigerant evaporating temperature is adjusted to the actual heat load rather than held fixed, which raises EER at part load — where a commercial system spends most of its hours.

Specifications and model numbers

Model numbers (28)

VRV 6 X Series — Outdoor — model numbers with cooling capacity.
Model	Horsepower	Cooling capacity
RXUQ6BYM	6HP	54,600 Btu/h
RXUQ8BYM	8HP	76,400 Btu/h
RXUQ10BYM	10HP	96,000 Btu/h
RXUQ12BYM	12HP	114,000 Btu/h
RXUQ14BYM	14HP	136,000 Btu/h
RXUQ16BYM	16HP	154,000 Btu/h
RXUQ18BYM	18HP	171,000 Btu/h
RXUQ20BYM	20HP	191,000 Btu/h
RXUQ22BYM	22HP	210,000 Btu/h
RXUQ24BYM	24HP	229,000 Btu/h
RXUQ26BYM	26HP	251,000 Btu/h
RXUQ28BYM	28HP	268,000 Btu/h
RXUQ30BYM	30HP	285,000 Btu/h
RXUQ32BYM	32HP	305,000 Btu/h
RXUQ34BYM	34HP	328,000 Btu/h
RXUQ36BYM	36HP	345,000 Btu/h
RXUQ38BYM	38HP	362,000 Btu/h
RXUQ40BYM	40HP	382,000 Btu/h
RXUQ42BYM	42HP	399,000 Btu/h
RXUQ44BYM	44HP	420,000 Btu/h
RXUQ46BYM	46HP	440,000 Btu/h
RXUQ48BYM	48HP	457,000 Btu/h
RXUQ50BYM	50HP	474,000 Btu/h
RXUQ52BYM	52HP	495,000 Btu/h
RXUQ54BYM	54HP	519,000 Btu/h
RXUQ56BYM	56HP	536,000 Btu/h
RXUQ58BYM	58HP	553,000 Btu/h
RXUQ60BYM	60HP	573,000 Btu/h

Design and installation limits

Maximum actual piping length: 165 m (190 m equivalent)
Maximum total piping length: 1,000 m
Height difference, outdoor to indoor: 110 m
Height difference between indoor units: 30 m
First branch to farthest indoor unit: 40 m standard, up to 90 m subject to conditions
Connection ratio: 50% – 200%
Power supply: 3-phase 4-wire, 380–415 V / 380 V, 50/60 Hz

Control: intelligent Touch Manager (DCM601) and intelligent Touch Controller for centralised control; BRC1H63W/K and BRC1E63 at room level. Building management integration over DIII-NET, with BACnet, LonWorks and Modbus interfaces.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure VRV-1025-K, October 2025, revision K.

VRV 6 A Series — Outdoor

76,400–747,000 Btu/h · 36 models

The VRV 6 range built for capacity and plant-space economy, cooling only.

Model numbers and specifications

26HP from a single casing: At 26HP the new single module occupies 1.34 m² against 1.68 m² for the previous two-casing combination — 20% less installation space and 11% less weight, at 354 kg against 400 kg.
78HP on one circuit: Single modules cover 8–26HP, doubles 28–52HP and triples 54–78HP, so one refrigerant circuit can serve a whole building rather than being split into several systems.
EER up to 4.48: About 7% better than the previous generation on average across 8–20HP, from a new compressor and VRT Smart II control.
Reinforced frame: Truss-shaped support with each part screwed on two axes. Daikin's Japanese model was tested by the National Institute of Technology and Evaluation against a seismic intensity 7 earthquake and 60 m/s winds.

Model numbers (36)

VRV 6 A Series — Outdoor — model numbers with cooling capacity.
Model	Horsepower	Cooling capacity
RXQ8BYM	8HP	76,400 Btu/h
RXQ10BYM	10HP	95,500 Btu/h
RXQ12BYM	12HP	114,000 Btu/h
RXQ14BYM	14HP	136,000 Btu/h
RXQ16BYM	16HP	154,000 Btu/h
RXQ18BYM	18HP	171,000 Btu/h
RXQ20BYM	20HP	191,000 Btu/h
RXQ22BYM	22HP	210,000 Btu/h
RXQ24BYM	24HP	229,000 Btu/h
RXQ26BYM	26HP	249,000 Btu/h
RXQ28BYM	28HP	268,000 Btu/h
RXQ30BYM	30HP	285,000 Btu/h
RXQ32BYM	32HP	305,000 Btu/h
RXQ34BYM	34HP	324,000 Btu/h
RXQ36BYM	36HP	341,000 Btu/h
RXQ38BYM	38HP	362,000 Btu/h
RXQ40BYM	40HP	382,000 Btu/h
RXQ42BYM	42HP	399,000 Btu/h
RXQ44BYM	44HP	420,000 Btu/h
RXQ46BYM	46HP	440,000 Btu/h
RXQ48BYM	48HP	457,000 Btu/h
RXQ50BYM	50HP	478,000 Btu/h
RXQ52BYM	52HP	498,000 Btu/h
RXQ54BYM	54HP	512,000 Btu/h
RXQ56BYM	56HP	532,000 Btu/h
RXQ58BYM	58HP	553,000 Btu/h
RXQ60BYM	60HP	573,000 Btu/h
RXQ62BYM	62HP	590,000 Btu/h
RXQ64BYM	64HP	611,000 Btu/h
RXQ66BYM	66HP	631,000 Btu/h
RXQ68BYM	68HP	648,000 Btu/h
RXQ70BYM	70HP	669,000 Btu/h
RXQ72BYM	72HP	689,000 Btu/h
RXQ74BYM	74HP	706,000 Btu/h
RXQ76BYM	76HP	727,000 Btu/h
RXQ78BYM	78HP	747,000 Btu/h

Control: Shares the VRV control platform: intelligent Touch Manager (DCM601), BRC1H63W/K and BRC1E63 room controllers, DIII-NET, and BACnet, LonWorks and Modbus building management interfaces.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure VRV-1025-K, October 2025, revision K.

VRV Indoor Units

0.8–20HP · 91 models

Thirteen indoor families share one VRV circuit, which is the reason VRV is specified on fit-outs where the ceiling treatment changes room by room.

Model numbers and specifications

Cassettes — FXFQ, FXFRQ, FXFSQ, FXZQ: Round Flow with 360° discharge, a Sensing variant that reads occupancy and floor temperature, a Streamer variant that irradiates the filter, and a Compact Multi Flow that fits a 600 × 600 mm ceiling module.
Ducted — FXDQ, FXDBQ, FXSQ, FXMQ: Slim duct for shallow voids, a bedroom duct for hotels and condominiums, then middle, middle-high and high static pressure units up to class 250 where duct runs are long.
Exposed — FXAQ, FXHQ, FXVQ: Wall mounted to class 100, ceiling suspended to class 140, and floor standing duct to class 500 for large volumes with no usable ceiling.
Fresh air — FXMQ-MF, FXMQ-BF, VAM: Outdoor-Air Processing units treat ventilation air on the same circuit; the VAM-HVE heat reclaim ventilator covers 150–2,000 m³/h. Air handling units are available from 6 to 120HP.

Model numbers (91)

VRV Indoor Units — model numbers with cooling capacity.
Indoor unit	Horsepower	Cooling capacity
FXFQ25AVM	1HP	Capacity index 25
FXFQ32AVM	1.25HP	Capacity index 32
FXFQ40AVM	1.6HP	Capacity index 40
FXFQ50AVM	2HP	Capacity index 50
FXFQ63AVM	2.5HP	Capacity index 63
FXFQ80AVM	3.2HP	Capacity index 80
FXFQ100AVM	4HP	Capacity index 100
FXFQ125AVM	5HP	Capacity index 125
FXFQ140AVM	6HP	Capacity index 140
FXFRQ25AVM	1HP	Capacity index 25
FXFRQ32AVM	1.25HP	Capacity index 32
FXFRQ40AVM	1.6HP	Capacity index 40
FXFRQ50AVM	2HP	Capacity index 50
FXFRQ63AVM	2.5HP	Capacity index 63
FXFRQ80AVM	3.2HP	Capacity index 80
FXFRQ100AVM	4HP	Capacity index 100
FXFRQ125AVM	5HP	Capacity index 125
FXFRQ140AVM	6HP	Capacity index 140
FXFSQ25AVM	1HP	Capacity index 25
FXFSQ32AVM	1.25HP	Capacity index 32
FXFSQ40AVM	1.6HP	Capacity index 40
FXFSQ50AVM	2HP	Capacity index 50
FXFSQ63AVM	2.5HP	Capacity index 63
FXFSQ80AVM	3.2HP	Capacity index 80
FXFSQ100AVM	4HP	Capacity index 100
FXFSQ125AVM	5HP	Capacity index 125
FXFSQ140AVM	6HP	Capacity index 140
FXZQ20BVM	0.8HP	Capacity index 20
FXZQ25BVM	1HP	Capacity index 25
FXZQ32BVM	1.25HP	Capacity index 32
FXZQ40BVM	1.6HP	Capacity index 40
FXZQ50BVM	2HP	Capacity index 50
FXDBQ40AVM	1.6HP	Capacity index 40
FXDBQ50AVM	2HP	Capacity index 50
FXDBQ63AVM	2.5HP	Capacity index 63
FXDBQ80AVM	3.2HP	Capacity index 80
FXDQ20PDVE	0.8HP	Capacity index 20
FXDQ25PDVE	1HP	Capacity index 25
FXDQ32PDVE	1.25HP	Capacity index 32
FXDQ40NDVE	1.6HP	Capacity index 40
FXDQ50NDVE	2HP	Capacity index 50
FXDQ63NDVE	2.5HP	Capacity index 63
FXSQ20PAVE	0.8HP	Capacity index 20
FXSQ25PAVE	1HP	Capacity index 25
FXSQ32PAVE	1.25HP	Capacity index 32
FXSQ40PAVE	1.6HP	Capacity index 40
FXSQ50PAVE	2HP	Capacity index 50
FXSQ63PAVE	2.5HP	Capacity index 63
FXSQ80PAVE	3.2HP	Capacity index 80
FXSQ100PAVE	4HP	Capacity index 100
FXSQ125PAVE	5HP	Capacity index 125
FXSQ140PAVE	6HP	Capacity index 140
FXMQ20PAVE	0.8HP	Capacity index 20
FXMQ25PAVE	1HP	Capacity index 25
FXMQ32PAVE	1.25HP	Capacity index 32
FXMQ40PAVE	1.6HP	Capacity index 40
FXMQ50PAVE	2HP	Capacity index 50
FXMQ63PAVE	2.5HP	Capacity index 63
FXMQ80PAVE	3.2HP	Capacity index 80
FXMQ100PAVE	4HP	Capacity index 100
FXMQ125PAVE	5HP	Capacity index 125
FXMQ140PAVE	6HP	Capacity index 140
FXMQ200PVM	8HP	Capacity index 200
FXMQ250PVM	10HP	Capacity index 250
FXHQ32MAVE	1.25HP	Capacity index 32
FXHQ63MAVE	2.5HP	Capacity index 63
FXHQ100MAVE	4HP	Capacity index 100
FXHQ125BVM	5HP	Capacity index 125
FXHQ140BVM	6HP	Capacity index 140
FXAQ20BVM	0.8HP	Capacity index 20
FXAQ25BVM	1HP	Capacity index 25
FXAQ32BVM	1.25HP	Capacity index 32
FXAQ40BVM	1.6HP	Capacity index 40
FXAQ50BVM	2HP	Capacity index 50
FXAQ63BVM	2.5HP	Capacity index 63
FXAQ71BVM	3HP	Capacity index 71
FXAQ80BVM	3.2HP	Capacity index 80
FXAQ100BVM	4HP	Capacity index 100
FXVQ125NY1	5HP	Capacity index 125
FXVQ200NY1	8HP	Capacity index 200
FXVQ250NY1	10HP	Capacity index 250
FXVQ400NY1	16HP	Capacity index 400
FXVQ500NY1	20HP	Capacity index 500
FXVQ500NY16	20HP	Capacity index 500
FXMQ125MFV1	5HP	Capacity index 125
FXMQ200MFV1	8HP	Capacity index 200
FXMQ250MFV1	10HP	Capacity index 250
FXMQ80BFVM	3.2HP	Capacity index 80
FXMQ140BFVM	6HP	Capacity index 140
FXMQ200BFVM	8HP	Capacity index 200
FXMQ250BFVM	10HP	Capacity index 250

Control: BRC1H63W/K and BRC1E63 wired controllers at room level. Streamer operation on FXFRQ is available only with BRC1H63W(K), runs only while the fan and cooling are stopped, and is capped at 180 minutes per day.

Official Daikin catalogue Daikin product page

Figures transcribed from Daikin brochure VRV-1025-K, October 2025, revision K.

VRV is designed, not picked from a list. Send us the floor plan and we will size the circuit, the branch and the plant space.

Send your floor plan

Complete model index

Every model number on this page, mapped to its series, capacity, paired unit and source brochure.

Open the full model index(396 models — 232 indoor, 164 outdoor)

Complete index of Daikin model numbers referenced on this page, with the series, category and source brochure for each.
Model	Type	Series	Cooling capacity	Paired with	Source
BCR50FMF panel	indoor	FCFC A-Series — Inverter Ceiling Cassette	18,500 (7,800-19,100) Btu/h	RZFC50AGVMM	RC-0921-H
BCR50FMW panel	indoor	FCFC A-Series — Inverter Ceiling Cassette	18,500 (7,800-19,100) Btu/h	RZFC50AGVMM	RC-0921-H
CTKC25RVM	indoor	MKC Series — Multi-Split	2.5 kW class	MKC50RVM / MKC70SVM	MKC-0520-C
CTKC35RVM	indoor	MKC Series — Multi-Split	3.5 kW class	MKC50RVM / MKC70SVM	MKC-0520-C
CTKC50SVM	indoor	MKC Series — Multi-Split	5.0 kW class	MKC70SVM	MKC-0520-C
FCC100AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC100BV1M	RC-0921-H
FCC125AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC125BY1M	RC-0921-H
FCC140AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC140BY1M	RC-0921-H
FCC50AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC50BV1M	RC-0921-H
FCC60AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC60BV1M	RC-0921-H
FCC85AV1M8	indoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	RC85BV1M	RC-0921-H
FCFC100AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	36,000 (17,100-38,200) Btu/h	RZFC100AVMM	RC-0921-H
FCFC125AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	42,000 (19,500-47,800) Btu/h	RZFC125AY1M	RC-0921-H
FCFC140AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	48,000 (21,200-52,900) Btu/h	RZFC140AY1M	RC-0921-H
FCFC50AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	18,500 (7,800-19,100) Btu/h	RZFC50AGVMM	RC-0921-H
FCFC60AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	20,500 (8,900-21,500) Btu/h	RZFC60AGVMM	RC-0921-H
FCFC71AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	24,200 (10,900-27,300) Btu/h	RZFC71AGVMM	RC-0921-H
FCFC85AV1MF	indoor	FCFC A-Series — Inverter Ceiling Cassette	30,000 (14,300-34,100) Btu/h	RZFC85AVMM	RC-0921-H
FCFG100AV1MF	indoor	FCFG Series — REVO Max Surround Cassette	36,000 (17,100-38,200) Btu/h	RZFG100AVMM	FCFG-0825-E
FCFG125AV1MF	indoor	FCFG Series — REVO Max Surround Cassette	42,000 (19,500-47,800) Btu/h	RZFG125AY1M	FCFG-0825-E
FCFG140AV1MF	indoor	FCFG Series — REVO Max Surround Cassette	48,000 (21,200-52,900) Btu/h	RZFG140AY1M	FCFG-0825-E
FCFG50AV1MF9	indoor	FCFG Series — REVO Max Surround Cassette	18,500 (7,800-19,100) Btu/h	RZFG50AGVMM	FCFG-0825-E
FCFG60AV1MF9	indoor	FCFG Series — REVO Max Surround Cassette	20,500 (8,900-21,500) Btu/h	RZFG60AGVMM	FCFG-0825-E
FCFG71AV1MF9	indoor	FCFG Series — REVO Max Surround Cassette	24,200 (10,900-27,300) Btu/h	RZFG71AGVMM	FCFG-0825-E
FCFG85AV1MF9	indoor	FCFG Series — REVO Max Surround Cassette	30,000 (14,300-34,100) Btu/h	RZFG85AVMM	FCFG-0825-E
FCFV100AV1MF	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	RGFV100AV1M	FCFV-1221-A
FCFV125AV1MF	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	RGFV125AY1M	FCFV-1221-A
FCFV18AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 18 — kW figure not stated in the official Daikin brochure.	RGFV18AV1S	FCFV-1221-A
FCFV24AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 24 — kW figure not stated in the official Daikin brochure.	RGFV24AV1S	FCFV-1221-A
FCFV30AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 30 — kW figure not stated in the official Daikin brochure.	RGFV30AV1S	FCFV-1221-A
FCFV36AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 36 — kW figure not stated in the official Daikin brochure.	RGFV36AV1S	FCFV-1221-A
FCFV42AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 42 — kW figure not stated in the official Daikin brochure.	RGFV42AY1S	FCFV-1221-A
FCFV46AV1S	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 46 — kW figure not stated in the official Daikin brochure.	RGFV46AY1S	FCFV-1221-A
FCFV50AV1MF	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	RGFV50AV1M	FCFV-1221-A
FCFV60AV1MF	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	RGFV60AV1M	FCFV-1221-A
FCFV85AV1MF	indoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	RGFV85AV1M	FCFV-1221-A
FDBC25AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 25 — kW figure not stated in the official Daikin brochure.	RC25AV1M	RC-0821-G
FDBC35AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 35 — kW figure not stated in the official Daikin brochure.	RC35AV1M	RC-0821-G
FDMC100AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	RC100AV1M	RC-0821-G
FDMC125AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	RC125AY1M	RC-0821-G
FDMC140AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	RC140AY1M	RC-0821-G
FDMC160AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 160 — kW figure not stated in the official Daikin brochure.	RC160AY1M	RC-0821-G
FDMC50AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	RC50AV1M	RC-0821-G
FDMC60AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	RC60AV1M	RC-0821-G
FDMC85AV1M	indoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	RC85AV1M	RC-0821-G
FDMFC100AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	36,000 (17,100-38,200) Btu/h	RZFC100AVMM	RC-0921-H
FDMFC125AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	42,000 (19,500-47,800) Btu/h	RZFC125AY1M	RC-0921-H
FDMFC140AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	48,000 (21,200-52,900) Btu/h	RZFC140AY1M	RC-0921-H
FDMFC50AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	18,500 (7,800-19,100) Btu/h	RZFC50AGVMM	RC-0921-H
FDMFC60AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	20,500 (8,900-21,500) Btu/h	RZFC60AGVMM	RC-0921-H
FDMFC71AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	24,200 (10,900-27,300) Btu/h	RZFC71AGVMM	RC-0921-H
FDMFC85AV1M	indoor	FDMFC-A Series — Ceiling Concealed Duct	30,000 (14,300-34,100) Btu/h	RZFC85AVMM	RC-0921-H
FHA100BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	RZF100CVM	RZF-1217-A
FHA125BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	RZF125CVM	RZF-1217-A
FHA140BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	RZF140CVM	RZF-1217-A
FHA50BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	RZF50CVM	RZF-1217-A
FHA60BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	RZF60CVM	RZF-1217-A
FHA71BVMA	indoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 71 — kW figure not stated in the official Daikin brochure.	RZF71C	RZF-1217-A
FHC100AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	RC100AV1M	RC-0821-G
FHC125AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	RC125AY1M	RC-0821-G
FHC140AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	RC140AY1M	RC-0821-G
FHC160AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 160 — kW figure not stated in the official Daikin brochure.	RC160AY1M	RC-0821-G
FHC50AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	RC50AV1M	RC-0821-G
FHC60AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	RC60AV1M	RC-0821-G
FHC85AV1M	indoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	RC85AV1M	RC-0821-G
FTKB25AV1M	indoor	FTKB Series	9,000 (3,500 - 9,200) Btu/h	RKB25AV1M	FTKB-1225-A
FTKB35AV1M	indoor	FTKB Series	12,300 (4,100 - 12,800) Btu/h	RKB35AV1M	FTKB-1225-A
FTKB50AV1M	indoor	FTKB Series	18,000 (5,600 - 18,500) Btu/h	RKB50AV1M	FTKB-1225-A
FTKB71AV1M	indoor	FTKB Series	24,000 (6,600 - 24,500) Btu/h	RKB71AV1M	FTKB-1225-A
FTKB75AV1M	indoor	FTKB Series	25,600 (7,900 - 29,000) Btu/h	RKB75AV1M	FTKB-1225-A
FTKE25AV1M	indoor	FTKE Series	9,000 (3,500 - 9,200) Btu/h	RKE25AV1M	FTKE-0724-A
FTKE25AV1MF	indoor	FTKE Series	9,000 (3,500 - 9,200) Btu/h	RKE25AV1M	FTKE-0724-A
FTKE25AV1MW	indoor	FTKE Series	9,000 (3,500 - 9,200) Btu/h	RKE25AV1M	FTKE-0724-A
FTKE35AV1M	indoor	FTKE Series	12,300 (4,100 - 12,800) Btu/h	RKE35AV1M	FTKE-0724-A
FTKE35AV1MF	indoor	FTKE Series	12,300 (4,100 - 12,800) Btu/h	RKE35AV1M	FTKE-0724-A
FTKE35AV1MW	indoor	FTKE Series	12,300 (4,100 - 12,800) Btu/h	RKE35AV1M	FTKE-0724-A
FTKE50AV1M	indoor	FTKE Series	18,000 (5,200 - 18,500) Btu/h	RKE50AV1M	FTKE-0724-A
FTKE50AV1MF	indoor	FTKE Series	18,000 (5,200 - 18,500) Btu/h	RKE50AV1M	FTKE-0724-A
FTKE50AV1MW	indoor	FTKE Series	18,000 (5,200 - 18,500) Btu/h	RKE50AV1M	FTKE-0724-A
FTKE71AV1M	indoor	FTKE Series	24,000 (6,600 - 24,500) Btu/h	RKE71AV1M	FTKE-0724-A
FTKE71AV1MF	indoor	FTKE Series	24,000 (6,600 - 24,500) Btu/h	RKE71AV1M	FTKE-0724-A
FTKE71AV1MW	indoor	FTKE Series	24,000 (6,600 - 24,500) Btu/h	RKE71AV1M	FTKE-0724-A
FTKF25CV1M	indoor	FTKF Series	9,000 (3,400 - 9,200) Btu/h	RKF25CV1M9	FTKF-0824-J
FTKF25CV1MF	indoor	FTKF Series	9,000 (3,400 - 9,200) Btu/h	RKF25CV1M9	FTKF-0824-J
FTKF25CV1MW	indoor	FTKF Series	9,000 (3,400 - 9,200) Btu/h	RKF25CV1M9	FTKF-0824-J
FTKF35CV1M	indoor	FTKF Series	12,300 (4,100 - 13,000) Btu/h	RKF35CV1M	FTKF-0824-J
FTKF35CV1MF	indoor	FTKF Series	12,300 (4,100 - 13,000) Btu/h	RKF35CV1M	FTKF-0824-J
FTKF35CV1MW	indoor	FTKF Series	12,300 (4,100 - 13,000) Btu/h	RKF35CV1M	FTKF-0824-J
FTKF50CV1M	indoor	FTKF Series	18,000 (5,200 - 18,500) Btu/h	RKF50CV1M	FTKF-0824-J
FTKF50CV1MF	indoor	FTKF Series	18,000 (5,200 - 18,500) Btu/h	RKF50CV1M	FTKF-0824-J
FTKF50CV1MW	indoor	FTKF Series	18,000 (5,200 - 18,500) Btu/h	RKF50CV1M	FTKF-0824-J
FTKF71CV1M	indoor	FTKF Series	24,000 (6,600 - 24,500) Btu/h	RKF71CV1M	FTKF-0824-J
FTKF71CV1MF	indoor	FTKF Series	24,000 (6,600 - 24,500) Btu/h	RKF71CV1M	FTKF-0824-J
FTKF71CV1MW	indoor	FTKF Series	24,000 (6,600 - 24,500) Btu/h	RKF71CV1M	FTKF-0824-J
FTKF75CV1M	indoor	FTKF Series	25,600 (7,900 - 29,000) Btu/h	RKF75CV1M	FTKF-0824-J
FTKF75CV1MF	indoor	FTKF Series	25,600 (7,900 - 29,000) Btu/h	RKF75CV1M	FTKF-0824-J
FTKH28BV1MF	indoor	FTKH Series — Smarto	9,700 (3,700 - 11,600) Btu/h	RKU28BV1M	FTKH-0426-M
FTKH35BV1MF	indoor	FTKH Series — Smarto	12,100 (4,000 - 13,000) Btu/h	RKU35BV1M	FTKH-0426-M
FTKH50BV1MF	indoor	FTKH Series — Smarto	19,000 (6,000 - 21,200) Btu/h	RKU50BV1M	FTKH-0426-M
FTKM25PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 25 — kW figure not stated in the official Daikin brochure.	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	MKM-0520-C
FTKM25TVMM	indoor	FTKM Series	8,500 (4,100 - 12,300) Btu/h	RKM25TVMM	FTKM-0323-D-L
FTKM35PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 35 — kW figure not stated in the official Daikin brochure.	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	MKM-0520-C
FTKM35TVMM	indoor	FTKM Series	11,900 (4,100 - 14,000) Btu/h	RKM35TVMM	FTKM-0323-D-L
FTKM42PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 42 — kW figure not stated in the official Daikin brochure.	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	MKM-0520-C
FTKM50PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	MKM-0520-C
FTKM50TVMM	indoor	FTKM Series	17,700 (4,100 - 21,200) Btu/h	RKM50TVMM	FTKM-0323-D-L
FTKM60PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	MKM80PVM / MKM95PVM / MKM105PVM	MKM-0520-C
FTKM60TVMM	indoor	FTKM Series	20,500 (4,100 - 24,200) Btu/h	RKM60TVMM	FTKM-0323-D-L
FTKM71PVM	indoor	MKM Series — Multi-Split (DC Inverter)	Class 71 — kW figure not stated in the official Daikin brochure.	MKM95PVM / MKM105PVM	MKM-0520-C
FTKM71TVMM	indoor	FTKM Series	24,200 (4,100 - 28,000) Btu/h	RKM71TVMM	FTKM-0323-D-L
FTKP28AV1M	indoor	FTKP Series	9,500 (3,400 - 11,000) Btu/h	RKP28AV1M9	FTKP-0824-F
FTKP28AV1MF	indoor	FTKP Series	9,500 (3,400 - 11,000) Btu/h	RKP28AV1M9	FTKP-0824-F
FTKP28AV1MW	indoor	FTKP Series	9,500 (3,400 - 11,000) Btu/h	RKP28AV1M9	FTKP-0824-F
FTKP35AV1M	indoor	FTKP Series	12,300 (4,100 - 13,000) Btu/h	RKP35AV1M	FTKP-0824-F
FTKP35AV1MF	indoor	FTKP Series	12,300 (4,100 - 13,000) Btu/h	RKP35AV1M	FTKP-0824-F
FTKP35AV1MW	indoor	FTKP Series	12,300 (4,100 - 13,000) Btu/h	RKP35AV1M	FTKP-0824-F
FTKP50AV1M	indoor	FTKP Series	19,000 (6,000 - 21,200) Btu/h	RKP50AV1M	FTKP-0824-F
FTKP50AV1MF	indoor	FTKP Series	19,000 (6,000 - 21,200) Btu/h	RKP50AV1M	FTKP-0824-F
FTKP50AV1MW	indoor	FTKP Series	19,000 (6,000 - 21,200) Btu/h	RKP50AV1M	FTKP-0824-F
FTKP71AV1M	indoor	FTKP Series	24,000 (6,600 - 24,500) Btu/h	RKP71AV1M	FTKP-0824-F
FTKP71AV1MF	indoor	FTKP Series	24,000 (6,600 - 24,500) Btu/h	RKP71AV1M	FTKP-0824-F
FTKP71AV1MW	indoor	FTKP Series	24,000 (6,600 - 24,500) Btu/h	RKP71AV1M	FTKP-0824-F
FTV28PBV1M	indoor	FTV-P Series	9,500 Btu/h	RV28PBV1M9	FTV-0724-T
FTV28PBV1MF9	indoor	FTV-P Series	9,500 Btu/h	RV28PBV1M9	FTV-0724-T
FTV28PBV1MW9	indoor	FTV-P Series	9,500 Btu/h	RV28PBV1M9	FTV-0724-T
FTV35PBV1M	indoor	FTV-P Series	12,000 Btu/h	RV35PBV1M9	FTV-0724-T
FTV35PBV1MF9	indoor	FTV-P Series	12,000 Btu/h	RV35PBV1M9	FTV-0724-T
FTV35PBV1MW9	indoor	FTV-P Series	12,000 Btu/h	RV35PBV1M9	FTV-0724-T
FTV50PBV1M	indoor	FTV-P Series	18,000 Btu/h	RV50PBV1M	FTV-0724-T
FTV50PBV1MF	indoor	FTV-P Series	18,000 Btu/h	RV50PBV1M	FTV-0724-T
FTV50PBV1MW	indoor	FTV-P Series	18,000 Btu/h	RV50PBV1M	FTV-0724-T
FTV60PBV1M	indoor	FTV-P Series	22,500 Btu/h	RV60PBV1M	FTV-0724-T
FTV60PBV1MF	indoor	FTV-P Series	22,500 Btu/h	RV60PBV1M	FTV-0724-T
FTV60PBV1MW	indoor	FTV-P Series	22,500 Btu/h	RV60PBV1M	FTV-0724-T
FTV85PBV1M	indoor	FTV-P Series	30,000 Btu/h	RC85BV1M	FTV-0724-T
FTV85PBV1MF	indoor	FTV-P Series	30,000 Btu/h	RC85BV1M	FTV-0724-T
FTV85PBV1MW	indoor	FTV-P Series	30,000 Btu/h	RC85BV1M	FTV-0724-T
FVC100AV1M	indoor	FVC-A Series — Floor Standing	36,000 Btu/h	RC100BY1M / RC100AGY1M	FVC-0425-C
FVC125AV1M	indoor	FVC-A Series — Floor Standing	42,000 Btu/h	RC125BY1M9 / RC125AGY1M9	FVC-0425-C
FVC140AV1M	indoor	FVC-A Series — Floor Standing	48,000 (full 4TR) Btu/h	RC140BY1M9 / RC140AGY1M9	FVC-0425-C
FVC85AV1M9	indoor	FVC-A Series — Floor Standing	29,000 Btu/h	RC85BY1M / RC85AGY1M	FVC-0425-C
FXAQ100BVM	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXAQ20BVM	indoor	VRV Indoor Units	Capacity index 20	—	VRV-1025-K
FXAQ25BVM	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXAQ32BVM	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXAQ40BVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXAQ50BVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXAQ63BVM	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXAQ71BVM	indoor	VRV Indoor Units	Capacity index 71	—	VRV-1025-K
FXAQ80BVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXDBQ40AVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXDBQ50AVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXDBQ63AVM	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXDBQ80AVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXDQ20PDVE	indoor	VRV Indoor Units	Capacity index 20	—	VRV-1025-K
FXDQ25PDVE	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXDQ32PDVE	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXDQ40NDVE	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXDQ50NDVE	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXDQ63NDVE	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXFQ100AVM	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXFQ125AVM	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXFQ140AVM	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXFQ25AVM	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXFQ32AVM	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXFQ40AVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXFQ50AVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXFQ63AVM	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXFQ80AVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXFRQ100AVM	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXFRQ125AVM	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXFRQ140AVM	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXFRQ25AVM	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXFRQ32AVM	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXFRQ40AVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXFRQ50AVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXFRQ63AVM	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXFRQ80AVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXFSQ100AVM	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXFSQ125AVM	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXFSQ140AVM	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXFSQ25AVM	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXFSQ32AVM	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXFSQ40AVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXFSQ50AVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXFSQ63AVM	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXFSQ80AVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXHQ100MAVE	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXHQ125BVM	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXHQ140BVM	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXHQ32MAVE	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXHQ63MAVE	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXMQ100PAVE	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXMQ125MFV1	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXMQ125PAVE	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXMQ140BFVM	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXMQ140PAVE	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXMQ200BFVM	indoor	VRV Indoor Units	Capacity index 200	—	VRV-1025-K
FXMQ200MFV1	indoor	VRV Indoor Units	Capacity index 200	—	VRV-1025-K
FXMQ200PVM	indoor	VRV Indoor Units	Capacity index 200	—	VRV-1025-K
FXMQ20PAVE	indoor	VRV Indoor Units	Capacity index 20	—	VRV-1025-K
FXMQ250BFVM	indoor	VRV Indoor Units	Capacity index 250	—	VRV-1025-K
FXMQ250MFV1	indoor	VRV Indoor Units	Capacity index 250	—	VRV-1025-K
FXMQ250PVM	indoor	VRV Indoor Units	Capacity index 250	—	VRV-1025-K
FXMQ25PAVE	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXMQ32PAVE	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXMQ40PAVE	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXMQ50PAVE	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXMQ63PAVE	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXMQ80BFVM	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXMQ80PAVE	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXSQ100PAVE	indoor	VRV Indoor Units	Capacity index 100	—	VRV-1025-K
FXSQ125PAVE	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXSQ140PAVE	indoor	VRV Indoor Units	Capacity index 140	—	VRV-1025-K
FXSQ20PAVE	indoor	VRV Indoor Units	Capacity index 20	—	VRV-1025-K
FXSQ25PAVE	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXSQ32PAVE	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXSQ40PAVE	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXSQ50PAVE	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
FXSQ63PAVE	indoor	VRV Indoor Units	Capacity index 63	—	VRV-1025-K
FXSQ80PAVE	indoor	VRV Indoor Units	Capacity index 80	—	VRV-1025-K
FXVQ125NY1	indoor	VRV Indoor Units	Capacity index 125	—	VRV-1025-K
FXVQ200NY1	indoor	VRV Indoor Units	Capacity index 200	—	VRV-1025-K
FXVQ250NY1	indoor	VRV Indoor Units	Capacity index 250	—	VRV-1025-K
FXVQ400NY1	indoor	VRV Indoor Units	Capacity index 400	—	VRV-1025-K
FXVQ500NY1	indoor	VRV Indoor Units	Capacity index 500	—	VRV-1025-K
FXVQ500NY16	indoor	VRV Indoor Units	Capacity index 500	—	VRV-1025-K
FXZQ20BVM	indoor	VRV Indoor Units	Capacity index 20	—	VRV-1025-K
FXZQ25BVM	indoor	VRV Indoor Units	Capacity index 25	—	VRV-1025-K
FXZQ32BVM	indoor	VRV Indoor Units	Capacity index 32	—	VRV-1025-K
FXZQ40BVM	indoor	VRV Indoor Units	Capacity index 40	—	VRV-1025-K
FXZQ50BVM	indoor	VRV Indoor Units	Capacity index 50	—	VRV-1025-K
MKC50RVM / MKC70SVM	outdoor	MKC Series — Multi-Split	2.5 kW class	CTKC25RVM	MKC-0520-C
MKC70SVM	outdoor	MKC Series — Multi-Split	5.0 kW class	CTKC50SVM	MKC-0520-C
MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM	outdoor	MKM Series — Multi-Split (DC Inverter)	Class 25 — kW figure not stated in the official Daikin brochure.	FTKM25PVM	MKM-0520-C
MKM80PVM / MKM95PVM / MKM105PVM	outdoor	MKM Series — Multi-Split (DC Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	FTKM60PVM	MKM-0520-C
MKM95PVM / MKM105PVM	outdoor	MKM Series — Multi-Split (DC Inverter)	Class 71 — kW figure not stated in the official Daikin brochure.	FTKM71PVM	MKM-0520-C
RC100AV1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	FHC100AV1M	RC-0821-G
RC100AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	FDMC100AV1M	RC-0821-G
RC100BV1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC100AV1M8	RC-0921-H
RC100BY1M / RC100AGY1M	outdoor	FVC-A Series — Floor Standing	36,000 Btu/h	FVC100AV1M	FVC-0425-C
RC125AY1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	FHC125AV1M	RC-0821-G
RC125AY1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	FDMC125AV1M	RC-0821-G
RC125BY1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC125AV1M8	RC-0921-H
RC125BY1M9 / RC125AGY1M9	outdoor	FVC-A Series — Floor Standing	42,000 Btu/h	FVC125AV1M	FVC-0425-C
RC140AY1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	FHC140AV1M	RC-0821-G
RC140AY1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	FDMC140AV1M	RC-0821-G
RC140BY1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC140AV1M8	RC-0921-H
RC140BY1M9 / RC140AGY1M9	outdoor	FVC-A Series — Floor Standing	48,000 (full 4TR) Btu/h	FVC140AV1M	FVC-0425-C
RC160AY1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 160 — kW figure not stated in the official Daikin brochure.	FHC160AV1M	RC-0821-G
RC160AY1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 160 — kW figure not stated in the official Daikin brochure.	FDMC160AV1M	RC-0821-G
RC25AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 25 — kW figure not stated in the official Daikin brochure.	FDBC25AV1M	RC-0821-G
RC35AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 35 — kW figure not stated in the official Daikin brochure.	FDBC35AV1M	RC-0821-G
RC50AV1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	FHC50AV1M	RC-0821-G
RC50AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	FDMC50AV1M	RC-0821-G
RC50BV1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC50AV1M8	RC-0921-H
RC60AV1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	FHC60AV1M	RC-0821-G
RC60AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	FDMC60AV1M	RC-0821-G
RC60BV1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC60AV1M8	RC-0921-H
RC85AV1M	outdoor	FHC-A Series — Ceiling Suspended (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	FHC85AV1M	RC-0821-G
RC85AV1M	outdoor	FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	FDMC85AV1M	RC-0821-G
RC85BV1M	outdoor	FTV-P Series	30,000 Btu/h	FTV85PBV1M	FTV-0724-T
RC85BV1M	outdoor	FCC-A Series — Ceiling Cassette	Not stated in the official Daikin brochure.	FCC85AV1M8	RC-0921-H
RC85BY1M / RC85AGY1M	outdoor	FVC-A Series — Floor Standing	29,000 Btu/h	FVC85AV1M9	FVC-0425-C
RGFV100AV1M	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	FCFV100AV1MF	FCFV-1221-A
RGFV125AY1M	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	FCFV125AV1MF	FCFV-1221-A
RGFV18AV1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 18 — kW figure not stated in the official Daikin brochure.	FCFV18AV1S	FCFV-1221-A
RGFV24AV1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 24 — kW figure not stated in the official Daikin brochure.	FCFV24AV1S	FCFV-1221-A
RGFV30AV1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 30 — kW figure not stated in the official Daikin brochure.	FCFV30AV1S	FCFV-1221-A
RGFV36AV1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 36 — kW figure not stated in the official Daikin brochure.	FCFV36AV1S	FCFV-1221-A
RGFV42AY1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 42 — kW figure not stated in the official Daikin brochure.	FCFV42AV1S	FCFV-1221-A
RGFV46AY1S	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 46 — kW figure not stated in the official Daikin brochure.	FCFV46AV1S	FCFV-1221-A
RGFV50AV1M	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	FCFV50AV1MF	FCFV-1221-A
RGFV60AV1M	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	FCFV60AV1MF	FCFV-1221-A
RGFV85AV1M	outdoor	FCFV Series — Ceiling Cassette (Non-Inverter)	Class 85 — kW figure not stated in the official Daikin brochure.	FCFV85AV1MF	FCFV-1221-A
RKB25AV1M	outdoor	FTKB Series	9,000 (3,500 - 9,200) Btu/h	FTKB25AV1M	FTKB-1225-A
RKB35AV1M	outdoor	FTKB Series	12,300 (4,100 - 12,800) Btu/h	FTKB35AV1M	FTKB-1225-A
RKB50AV1M	outdoor	FTKB Series	18,000 (5,600 - 18,500) Btu/h	FTKB50AV1M	FTKB-1225-A
RKB71AV1M	outdoor	FTKB Series	24,000 (6,600 - 24,500) Btu/h	FTKB71AV1M	FTKB-1225-A
RKB75AV1M	outdoor	FTKB Series	25,600 (7,900 - 29,000) Btu/h	FTKB75AV1M	FTKB-1225-A
RKE25AV1M	outdoor	FTKE Series	9,000 (3,500 - 9,200) Btu/h	FTKE25AV1M	FTKE-0724-A
RKE35AV1M	outdoor	FTKE Series	12,300 (4,100 - 12,800) Btu/h	FTKE35AV1M	FTKE-0724-A
RKE50AV1M	outdoor	FTKE Series	18,000 (5,200 - 18,500) Btu/h	FTKE50AV1M	FTKE-0724-A
RKE71AV1M	outdoor	FTKE Series	24,000 (6,600 - 24,500) Btu/h	FTKE71AV1M	FTKE-0724-A
RKF25CV1M9	outdoor	FTKF Series	9,000 (3,400 - 9,200) Btu/h	FTKF25CV1M	FTKF-0824-J
RKF35CV1M	outdoor	FTKF Series	12,300 (4,100 - 13,000) Btu/h	FTKF35CV1M	FTKF-0824-J
RKF50CV1M	outdoor	FTKF Series	18,000 (5,200 - 18,500) Btu/h	FTKF50CV1M	FTKF-0824-J
RKF71CV1M	outdoor	FTKF Series	24,000 (6,600 - 24,500) Btu/h	FTKF71CV1M	FTKF-0824-J
RKF75CV1M	outdoor	FTKF Series	25,600 (7,900 - 29,000) Btu/h	FTKF75CV1M	FTKF-0824-J
RKM25TVMM	outdoor	FTKM Series	8,500 (4,100 - 12,300) Btu/h	FTKM25TVMM	FTKM-0323-D-L
RKM35TVMM	outdoor	FTKM Series	11,900 (4,100 - 14,000) Btu/h	FTKM35TVMM	FTKM-0323-D-L
RKM50TVMM	outdoor	FTKM Series	17,700 (4,100 - 21,200) Btu/h	FTKM50TVMM	FTKM-0323-D-L
RKM60TVMM	outdoor	FTKM Series	20,500 (4,100 - 24,200) Btu/h	FTKM60TVMM	FTKM-0323-D-L
RKM71TVMM	outdoor	FTKM Series	24,200 (4,100 - 28,000) Btu/h	FTKM71TVMM	FTKM-0323-D-L
RKP28AV1M9	outdoor	FTKP Series	9,500 (3,400 - 11,000) Btu/h	FTKP28AV1M	FTKP-0824-F
RKP35AV1M	outdoor	FTKP Series	12,300 (4,100 - 13,000) Btu/h	FTKP35AV1M	FTKP-0824-F
RKP50AV1M	outdoor	FTKP Series	19,000 (6,000 - 21,200) Btu/h	FTKP50AV1M	FTKP-0824-F
RKP71AV1M	outdoor	FTKP Series	24,000 (6,600 - 24,500) Btu/h	FTKP71AV1M	FTKP-0824-F
RKU28BV1M	outdoor	FTKH Series — Smarto	9,700 (3,700 - 11,600) Btu/h	FTKH28BV1MF	FTKH-0426-M
RKU35BV1M	outdoor	FTKH Series — Smarto	12,100 (4,000 - 13,000) Btu/h	FTKH35BV1MF	FTKH-0426-M
RKU50BV1M	outdoor	FTKH Series — Smarto	19,000 (6,000 - 21,200) Btu/h	FTKH50BV1MF	FTKH-0426-M
RV28PBV1M9	outdoor	FTV-P Series	9,500 Btu/h	FTV28PBV1M	FTV-0724-T
RV35PBV1M9	outdoor	FTV-P Series	12,000 Btu/h	FTV35PBV1M	FTV-0724-T
RV50PBV1M	outdoor	FTV-P Series	18,000 Btu/h	FTV50PBV1M	FTV-0724-T
RV60PBV1M	outdoor	FTV-P Series	22,500 Btu/h	FTV60PBV1M	FTV-0724-T
RXQ10BYM	outdoor	VRV 6 A Series — Outdoor	95,500 Btu/h	—	VRV-1025-K
RXQ12BYM	outdoor	VRV 6 A Series — Outdoor	114,000 Btu/h	—	VRV-1025-K
RXQ14BYM	outdoor	VRV 6 A Series — Outdoor	136,000 Btu/h	—	VRV-1025-K
RXQ16BYM	outdoor	VRV 6 A Series — Outdoor	154,000 Btu/h	—	VRV-1025-K
RXQ18BYM	outdoor	VRV 6 A Series — Outdoor	171,000 Btu/h	—	VRV-1025-K
RXQ20BYM	outdoor	VRV 6 A Series — Outdoor	191,000 Btu/h	—	VRV-1025-K
RXQ22BYM	outdoor	VRV 6 A Series — Outdoor	210,000 Btu/h	—	VRV-1025-K
RXQ24BYM	outdoor	VRV 6 A Series — Outdoor	229,000 Btu/h	—	VRV-1025-K
RXQ26BYM	outdoor	VRV 6 A Series — Outdoor	249,000 Btu/h	—	VRV-1025-K
RXQ28BYM	outdoor	VRV 6 A Series — Outdoor	268,000 Btu/h	—	VRV-1025-K
RXQ30BYM	outdoor	VRV 6 A Series — Outdoor	285,000 Btu/h	—	VRV-1025-K
RXQ32BYM	outdoor	VRV 6 A Series — Outdoor	305,000 Btu/h	—	VRV-1025-K
RXQ34BYM	outdoor	VRV 6 A Series — Outdoor	324,000 Btu/h	—	VRV-1025-K
RXQ36BYM	outdoor	VRV 6 A Series — Outdoor	341,000 Btu/h	—	VRV-1025-K
RXQ38BYM	outdoor	VRV 6 A Series — Outdoor	362,000 Btu/h	—	VRV-1025-K
RXQ40BYM	outdoor	VRV 6 A Series — Outdoor	382,000 Btu/h	—	VRV-1025-K
RXQ42BYM	outdoor	VRV 6 A Series — Outdoor	399,000 Btu/h	—	VRV-1025-K
RXQ44BYM	outdoor	VRV 6 A Series — Outdoor	420,000 Btu/h	—	VRV-1025-K
RXQ46BYM	outdoor	VRV 6 A Series — Outdoor	440,000 Btu/h	—	VRV-1025-K
RXQ48BYM	outdoor	VRV 6 A Series — Outdoor	457,000 Btu/h	—	VRV-1025-K
RXQ50BYM	outdoor	VRV 6 A Series — Outdoor	478,000 Btu/h	—	VRV-1025-K
RXQ52BYM	outdoor	VRV 6 A Series — Outdoor	498,000 Btu/h	—	VRV-1025-K
RXQ54BYM	outdoor	VRV 6 A Series — Outdoor	512,000 Btu/h	—	VRV-1025-K
RXQ56BYM	outdoor	VRV 6 A Series — Outdoor	532,000 Btu/h	—	VRV-1025-K
RXQ58BYM	outdoor	VRV 6 A Series — Outdoor	553,000 Btu/h	—	VRV-1025-K
RXQ60BYM	outdoor	VRV 6 A Series — Outdoor	573,000 Btu/h	—	VRV-1025-K
RXQ62BYM	outdoor	VRV 6 A Series — Outdoor	590,000 Btu/h	—	VRV-1025-K
RXQ64BYM	outdoor	VRV 6 A Series — Outdoor	611,000 Btu/h	—	VRV-1025-K
RXQ66BYM	outdoor	VRV 6 A Series — Outdoor	631,000 Btu/h	—	VRV-1025-K
RXQ68BYM	outdoor	VRV 6 A Series — Outdoor	648,000 Btu/h	—	VRV-1025-K
RXQ70BYM	outdoor	VRV 6 A Series — Outdoor	669,000 Btu/h	—	VRV-1025-K
RXQ72BYM	outdoor	VRV 6 A Series — Outdoor	689,000 Btu/h	—	VRV-1025-K
RXQ74BYM	outdoor	VRV 6 A Series — Outdoor	706,000 Btu/h	—	VRV-1025-K
RXQ76BYM	outdoor	VRV 6 A Series — Outdoor	727,000 Btu/h	—	VRV-1025-K
RXQ78BYM	outdoor	VRV 6 A Series — Outdoor	747,000 Btu/h	—	VRV-1025-K
RXQ8BYM	outdoor	VRV 6 A Series — Outdoor	76,400 Btu/h	—	VRV-1025-K
RXUQ10BYM	outdoor	VRV 6 X Series — Outdoor	96,000 Btu/h	—	VRV-1025-K
RXUQ12BYM	outdoor	VRV 6 X Series — Outdoor	114,000 Btu/h	—	VRV-1025-K
RXUQ14BYM	outdoor	VRV 6 X Series — Outdoor	136,000 Btu/h	—	VRV-1025-K
RXUQ16BYM	outdoor	VRV 6 X Series — Outdoor	154,000 Btu/h	—	VRV-1025-K
RXUQ18BYM	outdoor	VRV 6 X Series — Outdoor	171,000 Btu/h	—	VRV-1025-K
RXUQ20BYM	outdoor	VRV 6 X Series — Outdoor	191,000 Btu/h	—	VRV-1025-K
RXUQ22BYM	outdoor	VRV 6 X Series — Outdoor	210,000 Btu/h	—	VRV-1025-K
RXUQ24BYM	outdoor	VRV 6 X Series — Outdoor	229,000 Btu/h	—	VRV-1025-K
RXUQ26BYM	outdoor	VRV 6 X Series — Outdoor	251,000 Btu/h	—	VRV-1025-K
RXUQ28BYM	outdoor	VRV 6 X Series — Outdoor	268,000 Btu/h	—	VRV-1025-K
RXUQ30BYM	outdoor	VRV 6 X Series — Outdoor	285,000 Btu/h	—	VRV-1025-K
RXUQ32BYM	outdoor	VRV 6 X Series — Outdoor	305,000 Btu/h	—	VRV-1025-K
RXUQ34BYM	outdoor	VRV 6 X Series — Outdoor	328,000 Btu/h	—	VRV-1025-K
RXUQ36BYM	outdoor	VRV 6 X Series — Outdoor	345,000 Btu/h	—	VRV-1025-K
RXUQ38BYM	outdoor	VRV 6 X Series — Outdoor	362,000 Btu/h	—	VRV-1025-K
RXUQ40BYM	outdoor	VRV 6 X Series — Outdoor	382,000 Btu/h	—	VRV-1025-K
RXUQ42BYM	outdoor	VRV 6 X Series — Outdoor	399,000 Btu/h	—	VRV-1025-K
RXUQ44BYM	outdoor	VRV 6 X Series — Outdoor	420,000 Btu/h	—	VRV-1025-K
RXUQ46BYM	outdoor	VRV 6 X Series — Outdoor	440,000 Btu/h	—	VRV-1025-K
RXUQ48BYM	outdoor	VRV 6 X Series — Outdoor	457,000 Btu/h	—	VRV-1025-K
RXUQ50BYM	outdoor	VRV 6 X Series — Outdoor	474,000 Btu/h	—	VRV-1025-K
RXUQ52BYM	outdoor	VRV 6 X Series — Outdoor	495,000 Btu/h	—	VRV-1025-K
RXUQ54BYM	outdoor	VRV 6 X Series — Outdoor	519,000 Btu/h	—	VRV-1025-K
RXUQ56BYM	outdoor	VRV 6 X Series — Outdoor	536,000 Btu/h	—	VRV-1025-K
RXUQ58BYM	outdoor	VRV 6 X Series — Outdoor	553,000 Btu/h	—	VRV-1025-K
RXUQ60BYM	outdoor	VRV 6 X Series — Outdoor	573,000 Btu/h	—	VRV-1025-K
RXUQ6BYM	outdoor	VRV 6 X Series — Outdoor	54,600 Btu/h	—	VRV-1025-K
RXUQ8BYM	outdoor	VRV 6 X Series — Outdoor	76,400 Btu/h	—	VRV-1025-K
RZF100CVM	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 100 — kW figure not stated in the official Daikin brochure.	FHA100BVMA	RZF-1217-A
RZF125CVM	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 125 — kW figure not stated in the official Daikin brochure.	FHA125BVMA	RZF-1217-A
RZF140CVM	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 140 — kW figure not stated in the official Daikin brochure.	FHA140BVMA	RZF-1217-A
RZF50CVM	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 50 — kW figure not stated in the official Daikin brochure.	FHA50BVMA	RZF-1217-A
RZF60CVM	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 60 — kW figure not stated in the official Daikin brochure.	FHA60BVMA	RZF-1217-A
RZF71C	outdoor	FHA-B Series — Ceiling Suspended (Inverter)	Class 71 — kW figure not stated in the official Daikin brochure.	FHA71BVMA	RZF-1217-A
RZFC100AVMM	outdoor	FDMFC-A Series — Ceiling Concealed Duct	36,000 (17,100-38,200) Btu/h	FDMFC100AV1M	RC-0921-H
RZFC100AVMM	outdoor	FCFC A-Series — Inverter Ceiling Cassette	36,000 (17,100-38,200) Btu/h	FCFC100AV1MF	RC-0921-H
RZFC125AY1M	outdoor	FDMFC-A Series — Ceiling Concealed Duct	42,000 (19,500-47,800) Btu/h	FDMFC125AV1M	RC-0921-H
RZFC125AY1M	outdoor	FCFC A-Series — Inverter Ceiling Cassette	42,000 (19,500-47,800) Btu/h	FCFC125AV1MF	RC-0921-H
RZFC140AY1M	outdoor	FDMFC-A Series — Ceiling Concealed Duct	48,000 (21,200-52,900) Btu/h	FDMFC140AV1M	RC-0921-H
RZFC140AY1M	outdoor	FCFC A-Series — Inverter Ceiling Cassette	48,000 (21,200-52,900) Btu/h	FCFC140AV1MF	RC-0921-H
RZFC50AGVMM	outdoor	FDMFC-A Series — Ceiling Concealed Duct	18,500 (7,800-19,100) Btu/h	FDMFC50AV1M	RC-0921-H
RZFC50AGVMM	outdoor	FCFC A-Series — Inverter Ceiling Cassette	18,500 (7,800-19,100) Btu/h	FCFC50AV1MF	RC-0921-H
RZFC60AGVMM	outdoor	FDMFC-A Series — Ceiling Concealed Duct	20,500 (8,900-21,500) Btu/h	FDMFC60AV1M	RC-0921-H
RZFC60AGVMM	outdoor	FCFC A-Series — Inverter Ceiling Cassette	20,500 (8,900-21,500) Btu/h	FCFC60AV1MF	RC-0921-H
RZFC71AGVMM	outdoor	FDMFC-A Series — Ceiling Concealed Duct	24,200 (10,900-27,300) Btu/h	FDMFC71AV1M	RC-0921-H
RZFC71AGVMM	outdoor	FCFC A-Series — Inverter Ceiling Cassette	24,200 (10,900-27,300) Btu/h	FCFC71AV1MF	RC-0921-H
RZFC85AVMM	outdoor	FDMFC-A Series — Ceiling Concealed Duct	30,000 (14,300-34,100) Btu/h	FDMFC85AV1M	RC-0921-H
RZFC85AVMM	outdoor	FCFC A-Series — Inverter Ceiling Cassette	30,000 (14,300-34,100) Btu/h	FCFC85AV1MF	RC-0921-H
RZFG100AVMM	outdoor	FCFG Series — REVO Max Surround Cassette	36,000 (17,100-38,200) Btu/h	FCFG100AV1MF	FCFG-0825-E
RZFG125AY1M	outdoor	FCFG Series — REVO Max Surround Cassette	42,000 (19,500-47,800) Btu/h	FCFG125AV1MF	FCFG-0825-E
RZFG140AY1M	outdoor	FCFG Series — REVO Max Surround Cassette	48,000 (21,200-52,900) Btu/h	FCFG140AV1MF	FCFG-0825-E
RZFG50AGVMM	outdoor	FCFG Series — REVO Max Surround Cassette	18,500 (7,800-19,100) Btu/h	FCFG50AV1MF9	FCFG-0825-E
RZFG60AGVMM	outdoor	FCFG Series — REVO Max Surround Cassette	20,500 (8,900-21,500) Btu/h	FCFG60AV1MF9	FCFG-0825-E
RZFG71AGVMM	outdoor	FCFG Series — REVO Max Surround Cassette	24,200 (10,900-27,300) Btu/h	FCFG71AV1MF9	FCFG-0825-E
RZFG85AVMM	outdoor	FCFG Series — REVO Max Surround Cassette	30,000 (14,300-34,100) Btu/h	FCFG85AV1MF9	FCFG-0825-E

Send us your floor plan.

We will size the system, name the Daikin model and quote it. Daikin publishes the catalogue; choosing from it is the part we are for.

Talk to our design team

Included: Heat load and capacity sizing
Included: Model selection against your plan
Included: Site survey and commercial consultation
Included: Written quotation

About these specifications

Every figure is transcribed from an official Daikin Malaysia brochure, and each series states the document code and revision it came from. Where a brochure does not publish a figure, this page says so rather than estimating it. Daikin revises specifications without notice — for anything a design or a tender will rely on, open Daikin's own current document from the links above.

Chance Air-Cond Sales & Service Sdn. Bhd. is an authorised Daikin dealer and has been a Daikin Million Dollar Dealer for six consecutive years. More about the company

Daikin Product Centre

Start with the space

Or start with the project

Wall Mounted

Energy rating at a glance

FTKH Series — Smarto

Model numbers (3)

Full technical specifications

FTKM Series

Model numbers (5)

Full technical specifications

FTKP Series

Model numbers (4)

Full technical specifications

FTKF Series

Model numbers (5)

Full technical specifications

FTKB Series

Model numbers (5)

Full technical specifications

FTKE Series

Model numbers (4)

Full technical specifications

FTV-P Series

Model numbers (5)

Full technical specifications

Multi Split

MKM Series — Multi-Split (DC Inverter)

Model numbers (6)

MKC Series — Multi-Split

Model numbers (3)

SkyAir Cassette

FCFG Series — REVO Max Surround Cassette

Model numbers (7)

Full technical specifications

FCFC A-Series — Inverter Ceiling Cassette

Model numbers (7)

Full technical specifications

FCC-A Series — Ceiling Cassette

Model numbers (6)

FCFV Series — Ceiling Cassette (Non-Inverter)

Model numbers (11)

Ceiling Concealed Duct

FDMFC-A Series — Ceiling Concealed Duct

Model numbers (7)

Full technical specifications

FDMC-A Series — Ceiling Concealed Duct (Non-Inverter)

Model numbers (9)

Ceiling Suspended

FHA-B Series — Ceiling Suspended (Inverter)

Model numbers (6)

FHC-A Series — Ceiling Suspended (Non-Inverter)

Model numbers (7)

Floor Standing

FVC-A Series — Floor Standing

Model numbers (4)

VRV / VRF

VRV 6 X Series — Outdoor

Model numbers (28)

Design and installation limits

VRV 6 A Series — Outdoor

Model numbers (36)

VRV Indoor Units

Model numbers (91)

Complete model index

Send us your floor plan.

About these specifications
